    Protek Varimesh – Variable Spaced Wire Mesh Security Fencing System

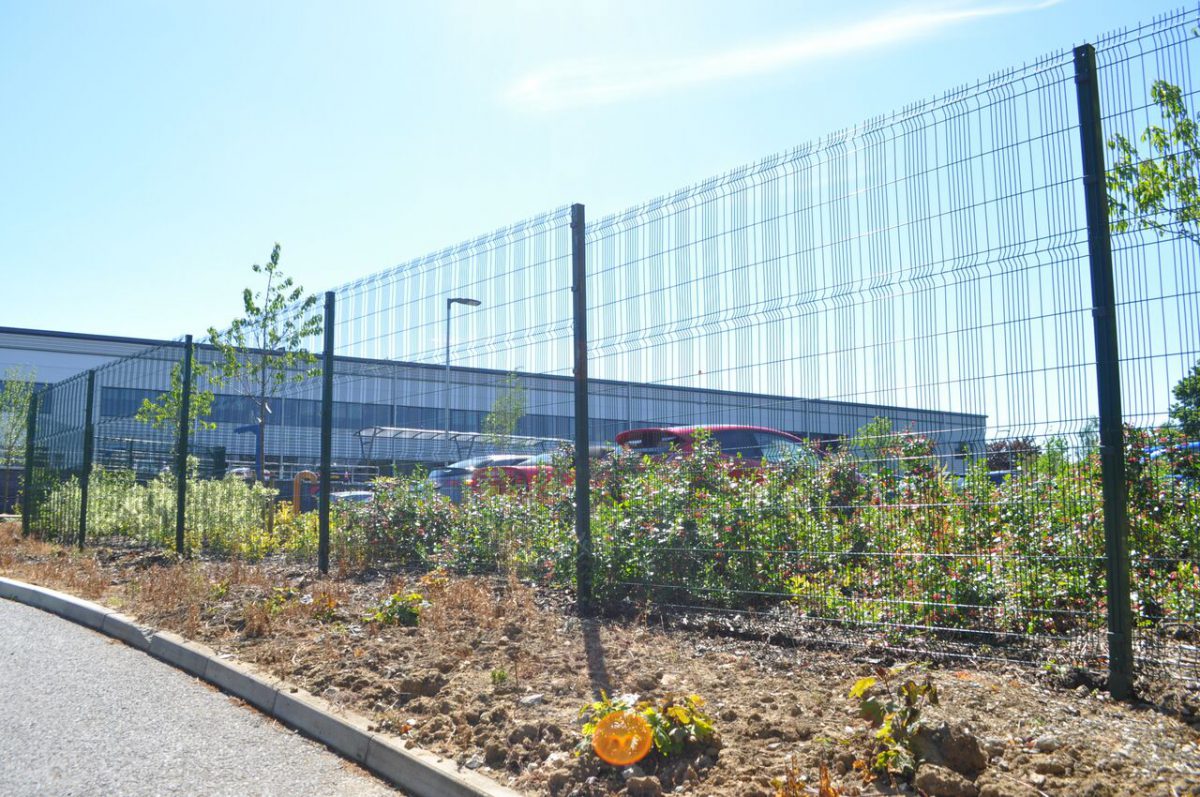

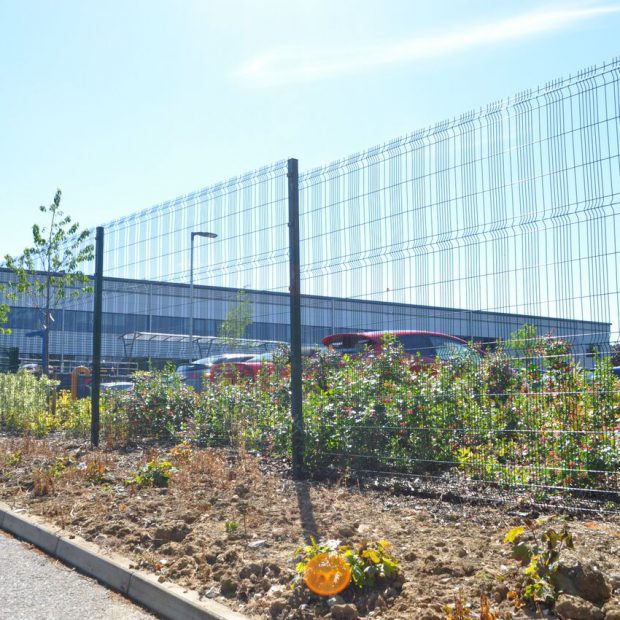

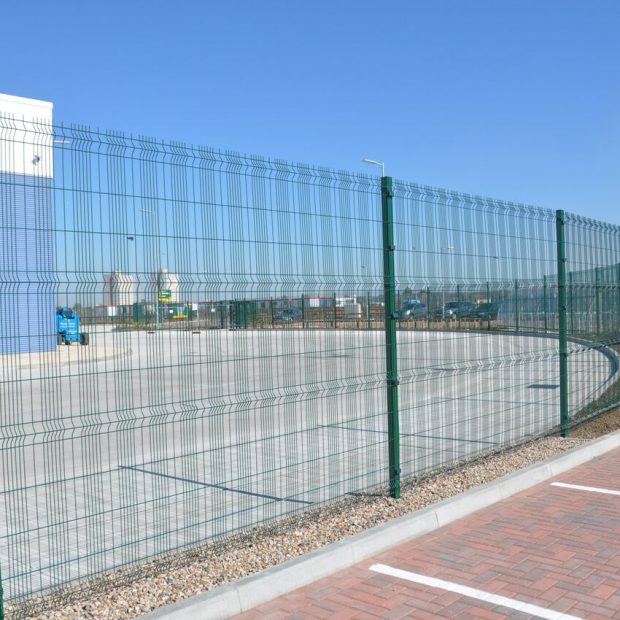

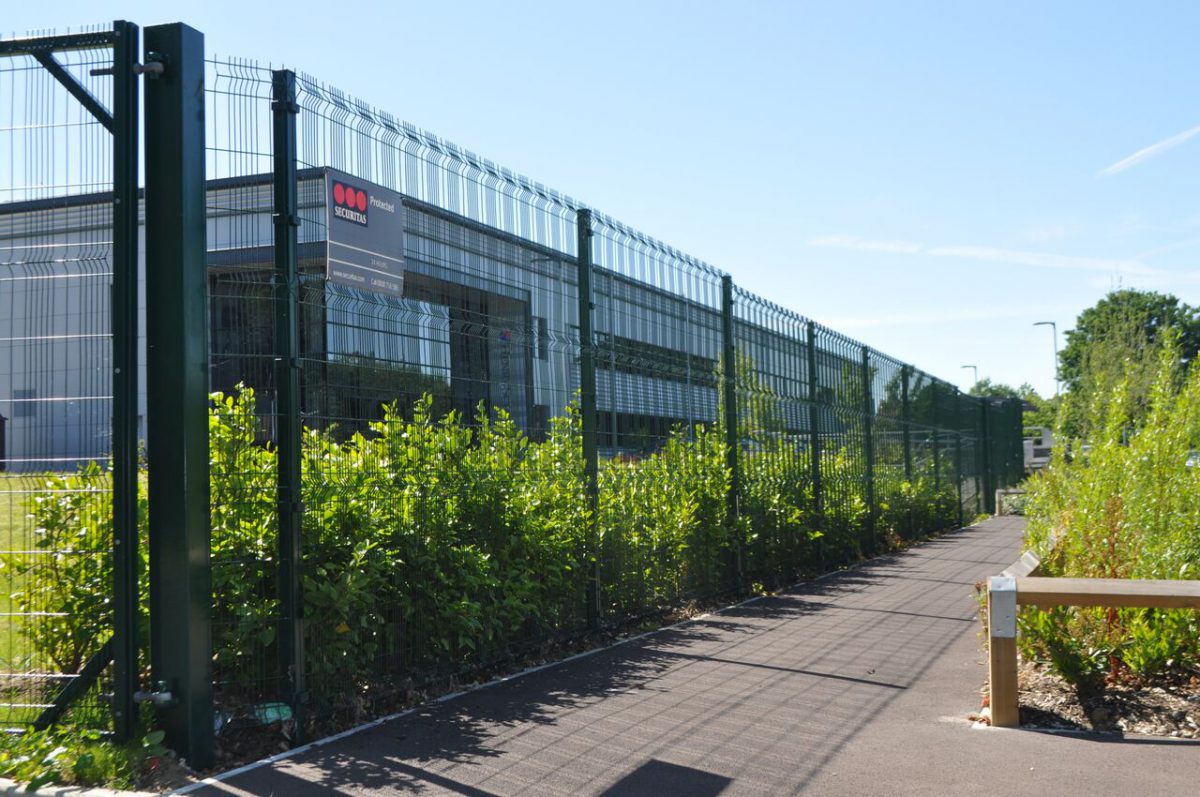

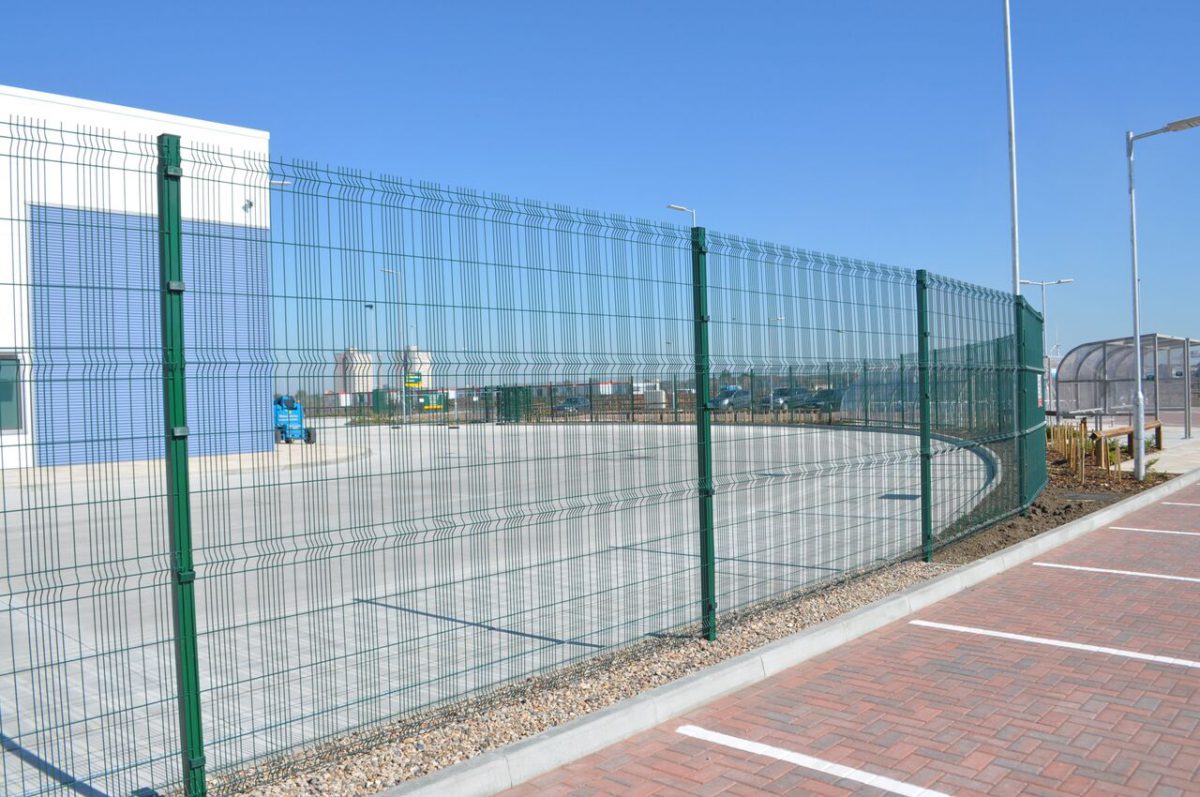

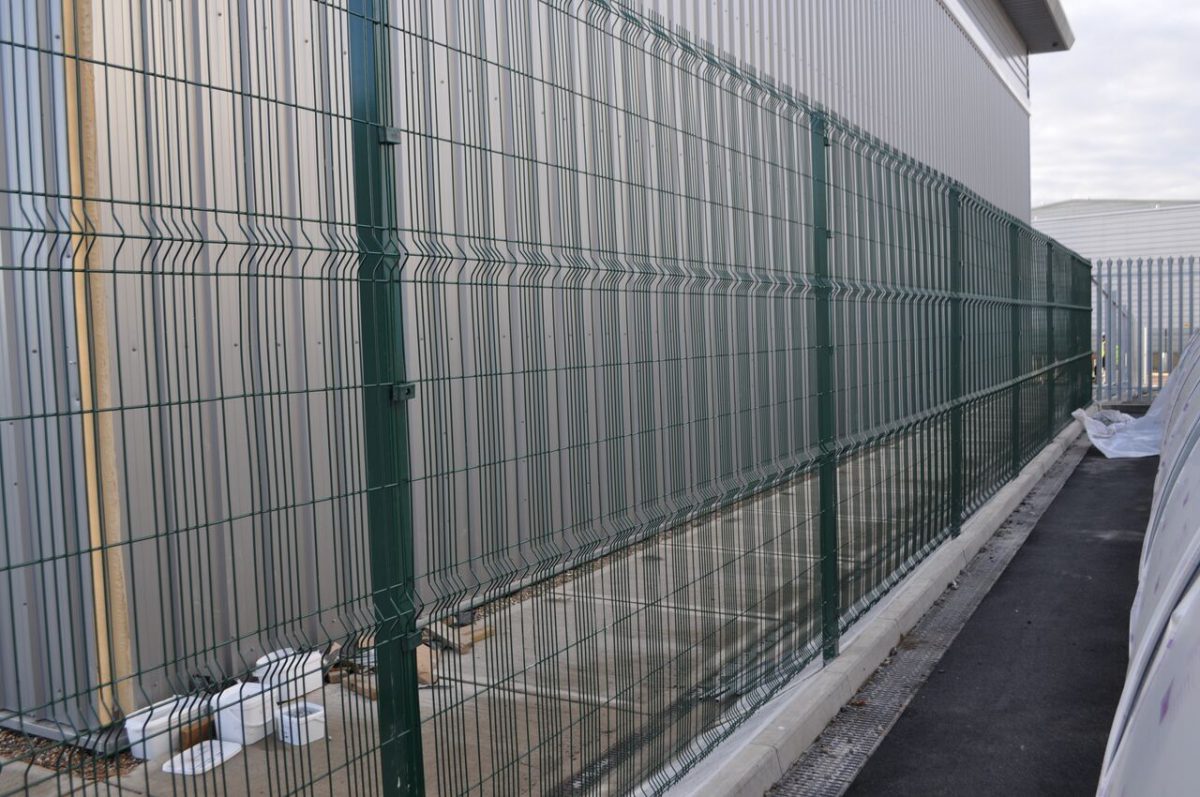

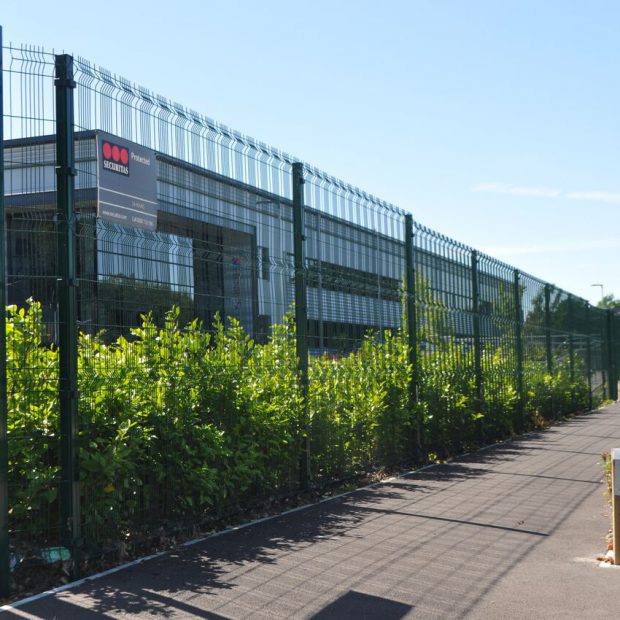

    This anti-climb V-mesh system features vertical wires that are set at varied spacing, creating a stripe effect along the fence line.

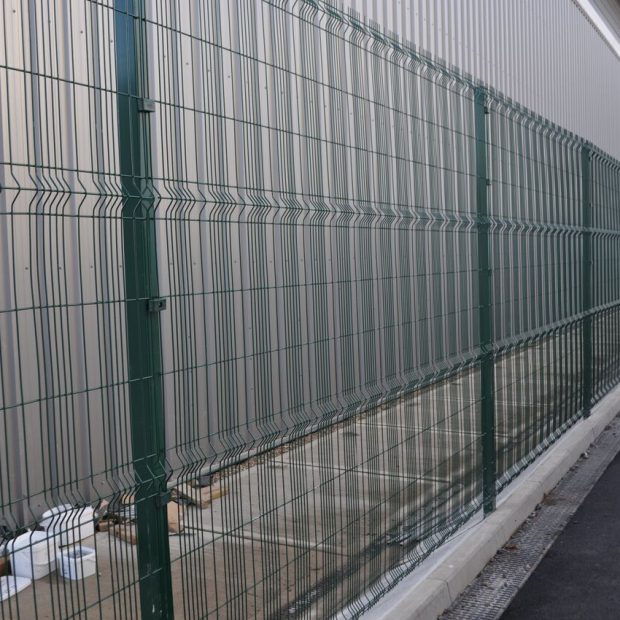

    Providing a ‘medium level’ of security, Protek Varimesh has folded triangular V near the top of each panel. Combined with the tight spacing of the apertures, this creates a boundary fence that is very difficult to climb over, while still being aesthetically pleasing to the eye. Individual mesh panels are held together with metal clips that are pinned into the supporting vertical posts.

    Available In Multiple Different Panel Heights

    Protek Varimesh can be supplied in heights from 1.2m high, up to 3m. As the height of the fence increases, the number of triangle V folds increases, as well as the number of clips each post uses to support the mesh panels. Protek mesh systems are very easy to install and can be stepped up or down as the ground contours change.

    Finish Options

    All of our Protek mesh fencing is hot-dip galvanised to provide a lasting resistance to rust and weathering. On top of that a polyester powder coat can be added to provide extra protection and increase the aesthetic appeal even further. Green mesh fencing is the most common type, with black also being popular for urban areas. We can supply Protek Varimesh to any RAL colour with a short lead time.

    One Of The UK’s Leading Security Fencing Suppliers

    Alexandra Security is one of the UK’s leading suppliers of metal security fencing, and our wire mesh is manufactured to a high standard. With decades of experience, we can offer expert advice on the right type of security fencing for your project. All of our mesh fencing comes with a 15-year guarantee, and we can supply matching standard and bespoke gates to match all of our fencing types. Supporting CAD drawings also mean you can see and sign-off the design before committing to manufacture. Get in touch with our team today to start planning your next security fencing project.

    Nominal Fence Height (m) Panel Size Height x Width (mm) Post Centres (mm) No. ‘V’ Bars per Panel Overall Length of Post (mm) Post Size (mm) Clips Per Post Clips Per Corner
    1.8 1,730 x 3,005 3,030 3 2,400 60 x 40 4 8
    2.0 1,930 x 3,005 3,030 3 2,600 60 x 40 4 8
    2.4 2,330 x 3,005 3,030 4 3,150 60 x 40 5 10

    Subject To Change

    More Info


    Posts, Clips and Fixings

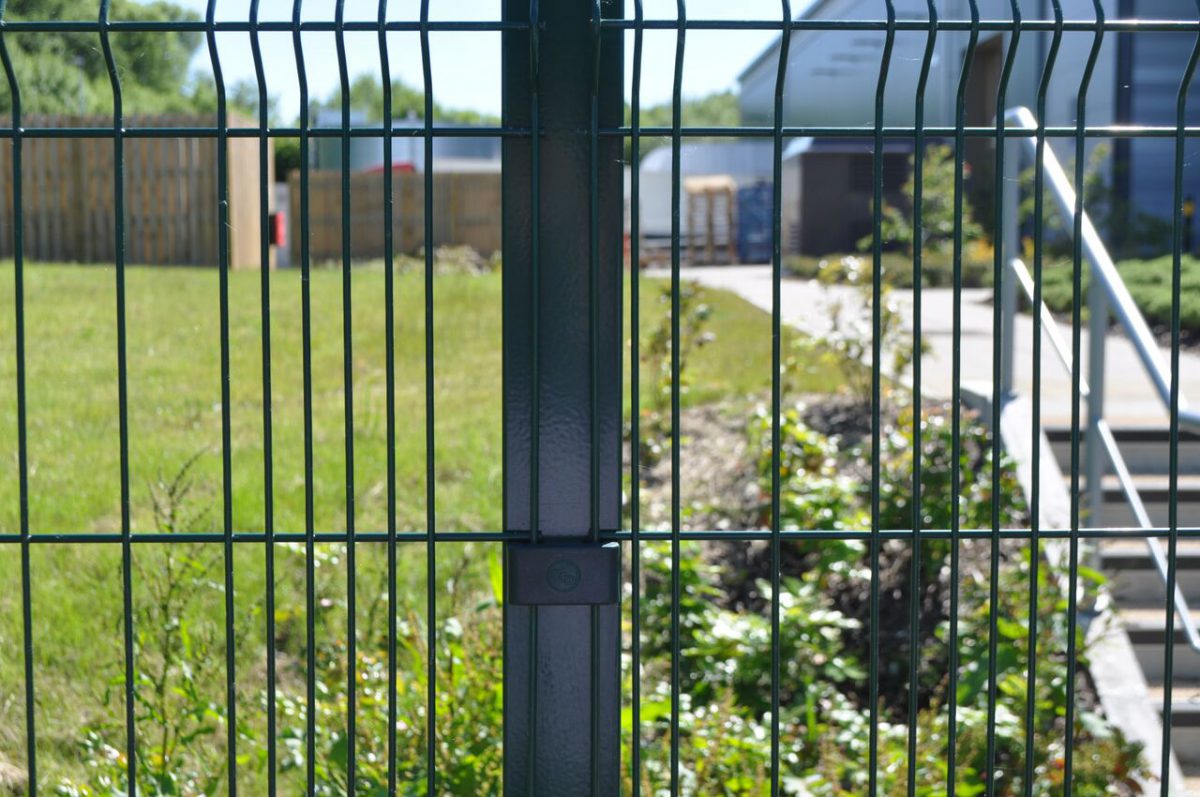

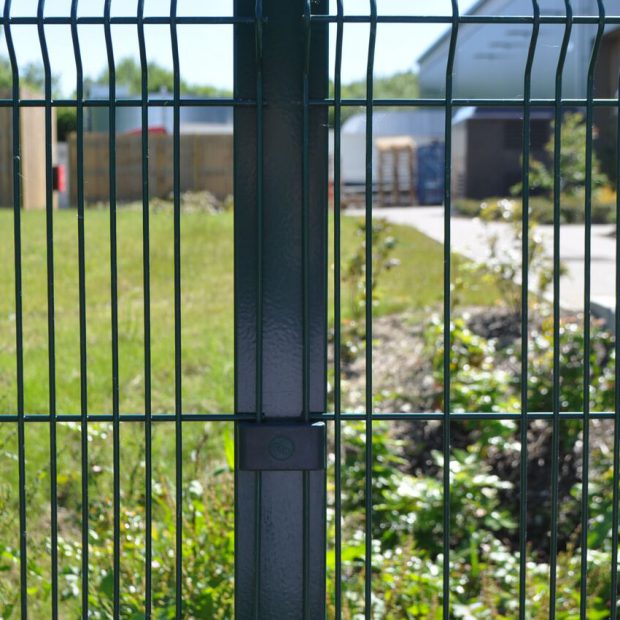

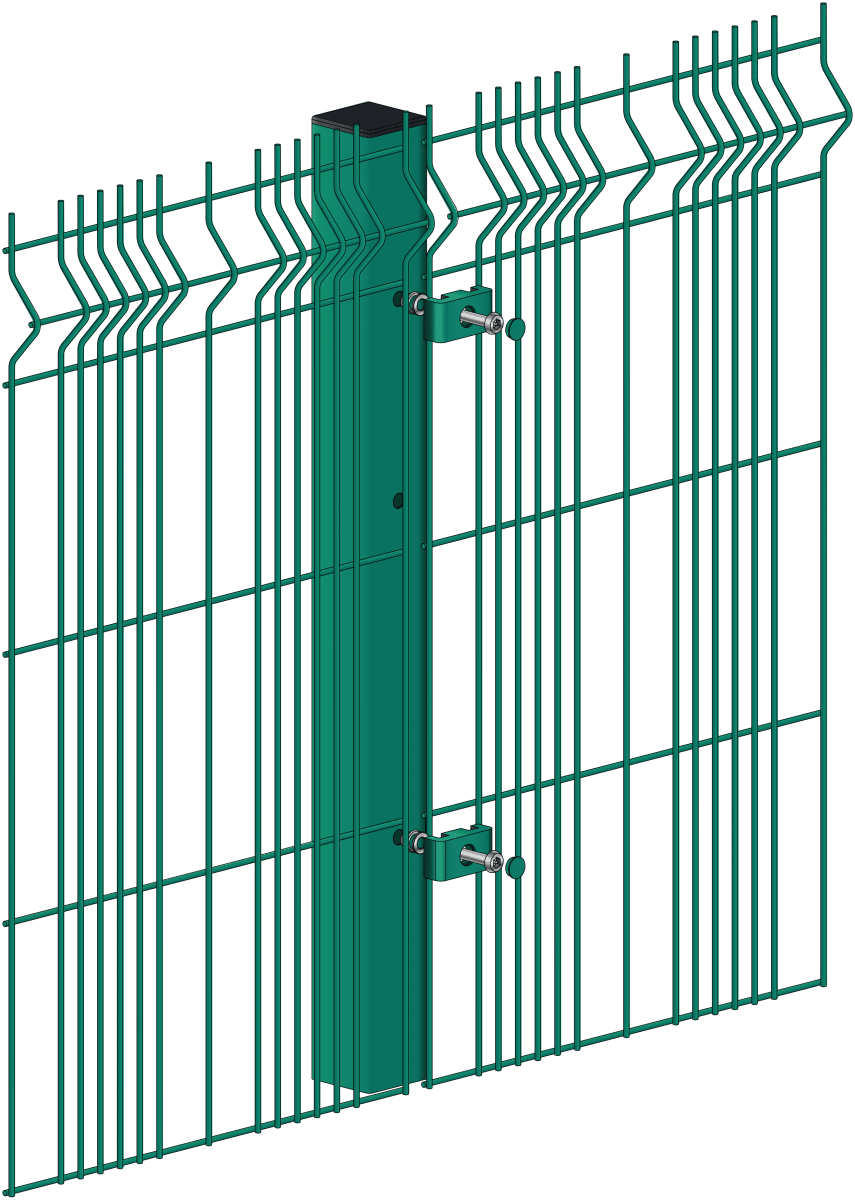

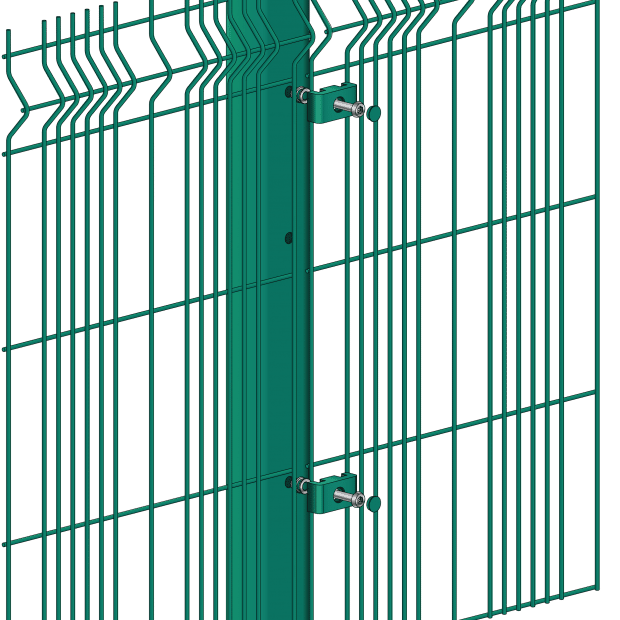

    The posts and metal clips that Alexandra Security Limited offers provide a fixing system which secures the panels but allows for variations. The system is easy to install and allows the panels to be stepped, helping the fence line to follow the contours of the ground. With the vandal resistant security fixings this post and clip system provides a reasonable level of security to any boundary.


    • Panels can be inverted to create flat top option


    Product and Finish Standards

    • Mesh panel wire manufactured to BS 4102 and galvanised to BS EN 10244-2:2001 class D, weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m2)
    • Post material manufactured to BS EN 10210-2:1997 and galvanised to BS EN 10346:2009
    • Panels & Posts are powder coated to BS EN 13438:2005 (min 100 micron)
    • All welding carried out in accordance with BS EN 1011-1 and BS EN 1011-2 by suitable personnel qualified according to BS EN 287-1
