    Key Clamp Handrail Fittings

    Limited End of Line Stocks Available – Contact Us For Current Stock

    A versatile, multi-purpose clamp and rail system that uses easy to install cast iron fittings.

    Also known as keyclamp, kee clamp or alvin key clamp, our system is called Quickclamp. Ideal for a wide range of uses in retail, industry, education and domestic properties. The main feature of the system is it is easy to build and requires no welding, glue or special tools. A simple hex key is all that is needed to securely connect the different design clamps onto connecting railings. By being simple to install, it saves time and costs on design, planning and labour compared to custom-made handrail solutions.

    Key Clamp – More Than Just Handrails

    Whilst used primarily to construct a safety handrail systems and balustrades, QuickClamp also has many other uses such as barriers around car parks, waterways, shopping centres as well as providing support structures for canopies. It can even be used to construct furniture, such as key clamp tables, chairs, clothing rails and shelves. The ability to paint the clamps and rails means that with a little clever thinking, there are an wide range of uses for the system outside of traditional applications.

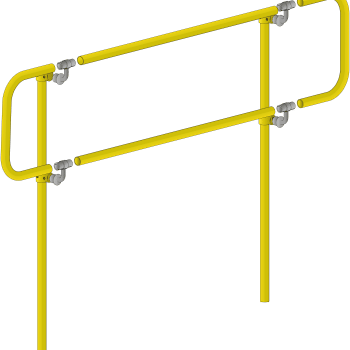

    A Modular Handrail System

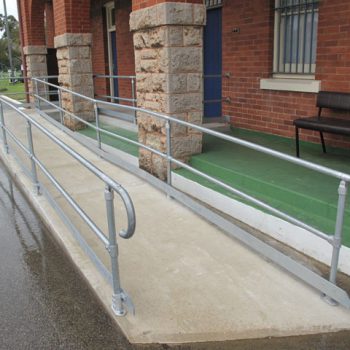

    The modular key clamp fittings of the Kee Clamp system ensure that an effective handrail system can be constructed, even on sloped ground or steps. Galvanised handrail tubes are available in 3.2m or 6.4m lengths and can be combined with an extensive range of connectors and base plates. We would point out that the chosen size / combination for any application remains completely the responsibility of the customer and any dead and imposed loads applied must be taken into consideration when designing an installation.

    Quickclamp Handrail Finish And Standards

    All tube clamp fittings are hot dip galvanised to BS EN ISO1461 and tubing is galvanised to BS1387 providing long lasting resistance to corrosion. Powder Coat finishes to standard RAL colours are available on request.

    Our Expert Team Are Here To Help

    Alexandra Security are a long-established supplier and stockist of handrail fittings. Not sure if QuickClamp is the right solution for your project, or a need more information on specific types of fittings? Our team have the knowledge to supply you with the correct product for your needs. Contact them today to get started on your next QuickClamp railing project.

    More Info

    Technical

    QuickClamp - Tubes

    Quick Clamp – Tubes

    Supplied in lengths of 3.2m, in galvanised finish. Can be cut to required length on site. Available in sizes C & D.

    QuickClamp - 101

    101 – Short Tee

    A 90º tee connection between two tubes. For joining the top-rail to an inter post or an end post to a mid-rail. Please note: This fitting is not suitable for joining two tubes together. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 104

    104 – Long Tee

    A 90º tee connection between two tubes. For joining the top-rail to an inter post. This fitting can be used to join two tubes together. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 116

    116 – Corner-Centre Tube

    A 90º corner with a vertical tube passing through. For connecting the mid-rail to a vertical on a 90º corner. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 119

    119 – Two Socket Cross

    A 90º joint between the vertical tube and the horizontal. For connecting the mid-rail to the inter posts. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 125

    125 – 90° Elbow

    A 90º joint between the vertical tube and the horizontal. For connecting the mid-rail to the inter posts. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 128

    128 – Three Way 90° Elbow

    A 90º corner with a vertical tube. For connecting two top-rails on a 90º corner with a vertical tube. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 129

    129 – Two Socket Cross

    A 30º- 60º tee connection between two tubes. For joining the top-rail at an angle of between 30º- 60º to an inter post. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 130

    130 – 30° to 45° Adjustable Cross

    A 30º- 45º two socket cross connection between two tubes. To join the mid-rail at an angle of between 30º- 45º to an inter post. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 131

    131 – Base Flange

    To terminate a tube into a wall or similar. Please note: Not suitable for use as a base plate for the hand railing system. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 132

    132 – Railing Base Flange

    For use as a base plate for a hand railing system. Please note: Must always be positioned with the holes across the line of the railing for strength. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 133

    133 – Plastic End Cap

    For terminating a length of tubing. Supplied in grey. Available in sizes C & D.

    QuickClamp - 134

    134 – Ground Socket

    For use as a dig-in plate for a hand railing system. Cast into concrete and set flush with the ground. The vertical tube is held in place with the grubscrew but can be easily removed. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 135

    135 – Clamp On Tee

    For use in adding additional supports to an existing structure without the need of dismantling. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 138

    138 – Gate Eye

    Female fitting of a two part gate hinge set. Can be secured in any position on a vertical tube. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 140

    140 – Gate Hinge

    Male fitting of a two part gate hinge set. Can be secured in any position on a vertical tube. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 143

    143 – Handrail Bracket

    Wall mount bracket for the handrailing system. The tube passes through the bracket and can be secured at any point. Please Note: Not suitable for use as a structural fitting. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 144

    144 – Structural Side Support

    Structural off-set side support for securing handrailing to walls, steps, etc. The tube is unable to pass through this fitting helping to add strength to the structure. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 145

    145 – Non-Structural Side Support

    Non-structural off-set side support for securing handrailing to walls, steps, etc. The tube is unable to pass through this fitting helping to add strength to the structure. Please Note: Not suitable for use as a structural fitting. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 146

    146 – Structural Side Palm Fixing

    Structural side palm fixing for securing handrailing to walls, steps, etc. The flush design allows the vertical tube to be tight to the structure. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 147

    147 – Internal Swivel Tee

    Used with other fittings within the Quickclamp handrailing range this fitting creates a 360° swivel joint. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 148

    148 – Short Swivel Tee

    Used to create angles between 85º and 235º. A central vertical tube is required to join the fittings together. Please Note: Always sold in pairs. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 149

    149 – External Sleeve Joint

    This fitting is used to externally join two tubes together of the same diameter. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 150

    150 – Internal Tube Joint

    Used to internally join two tubes together of the same diameter. Please Note: Always sold as pairs. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 158

    158 – Four Way Cross

    A four way cross allowing four horizontal tubes to join at 90º to each other. A vertical tube can pass through the centre of the fitting. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 160

    160 – Clamp On Crossover

    Used to add additional supports to an existing structure without the need of dismantling. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 161

    161 – 90° Crossover

    Used for racking systems or offset handrailing. Please Note: The tube is unable to be jointed within this fitting. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 165

    165 – Combination Socket

    A combination fitting for use in the construction of racking systems. The fitting allows a vertical tube to be connected at 90º to two horizontal tubes. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 167

    167 – Double Swivel Combination

    Double swivel combination with the swivel connectors at 180º to each other. Each swivel has a travel of approximately 85º from the vertical in both directions. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 168

    168 – 90° Corner Swivel

    Double swivel combination with the swivel connectors at 90º to each other. Each swivel has a travel of approximately 85º from the vertical in both directions. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 169

    169 – Swivel Flange

    Allows a tube travel of approximately 85º from the vertical in both directions. Please Note: An entire structure should not be constructed from swivel fittings alone, as these would not provide sufficient stability or rigidity in the structure due to the free rotation of the fitting. This fitting is not recommended for use as a base plate for guardrailing. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 170

    170 – Single Sided Mesh Clip

    Allows mesh panels to be secured to one side of a vertical or horizontal tube. Supplied with M6 x 30mm long bolt and nut. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 171

    171 – Double Sided Mesh Clip

    Allows mesh panels to be secured to either side of a vertical or horizontal tube. Supplied with M6 x 30mm long bolts and nuts. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 173

    173 – Single Swivel Socket

    Single swivel combination. The swivel has a travel of approximately 85º from the horizontal in both vertical directions. Please Note: An entire structure should not be constructed from swivel fittings alone, as these would not provide sufficient stability or rigidity in the structure due to the free rotation of the fitting. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 176

    176 – Side Outlet Tee

    Side outlet tee used to join three horinzontal tubes at 90º to each. Allows a vertical tube to pass through the fitting. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 179

    179 – Locking Collar

    Used to add extra support to a structure where the slip load on the grubscrew is exceeded. Supplied in galvanised finish. Available in sizes C & D.

    QuickClamp - 201

    201 – Angled Single Socket Tee

    An adjustable tee connection between two tubes. Used on ramps to join the top-rail to an inter post or an end post to a mid-rail. Please Note: Not suitable for joining two tubes. Supplied in galvanised finish. Available in size D.

    QuickClamp - 204

    204 – Angled Long Tee

    An adjustable tee connection between two tubes. Used on ramps to join the top-rail to an inter post or an end post to a mid-rail. This fitting can be used to join two tubes together. Supplied in galvanised finish. Available in size D.

    QuickClamp - 219

    219 – Angled Two Socket Cross

    An adjustable joint between the vertical tube and the horizontal. Used to connect the mid-rail to the inter posts. Supplied in galvanised finish. Available in size D.

    QuickClamp - 225

    225 – Angled Elbow

    An adjustable elbow used to join the end post to the top-rail. Supplied in galvanised finish. Available in size D.

    QuickClamp - 232

    232 – Angled Railing Base Flange

    An adjustable base plate for the hand railing system. Used on shallow ramps with a rake of between 4º- 10º. Supplied in galvanised finish. Available in size D.
