    Sports Perimeter Railings

    Spectator rails are ideal for sports areas where public viewing is just as important as their safety.

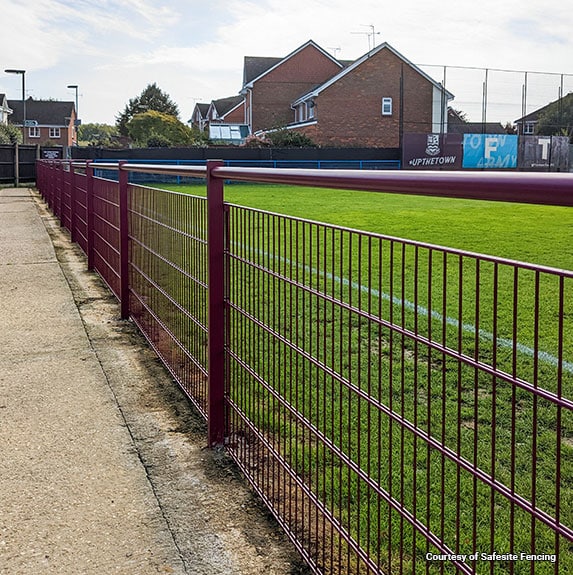

    An ideal boundary fence solution for running tracks, tennis courts, as well as rugby, football, hockey, or cricket pitches, Alexandra Security Spectator Rail ensures that visibility is not obscured while creating a strong perimeter barrier around the edge of the sports area between the players and spectators. The top railing of the spectator rail gives a strong area to lean upon, while the lower mesh fence area prevents balls from escaping the pitch and provides a solid area where advertising boards can be attached.

    Spectator Railing Manufactured To A High Standard

    Alexandra Security Spectator Rail is manufactured to BS 4102 and galvanised to BS EN 10244-2:2001 for long-lasting protection from corrosion. The entire system can also be powder coated to over 1000 RAL colours, allowing you to match the colour of your team, school or brand. The lower mesh is available in both 656 or 868 standard or rebound mesh, giving you multiple options to suit your budget and requirements. Optional kickboards are also available to be fitted over the lower mesh, making them particularly suitable as a boundary spectator fence for hockey courts and cricket grounds.

    Provide Access With Matching Spectator Rail Gates

    Protek Spectator Gates are designed to complement the look and continuous run of the Protek Spectator Rail, as well as ensure the safety of all sports fans. Single and double-leaf gates make an attractive and vital addition to your sports area, allowing for pedestrian and vehicular access. All gates feature a padlock slide bolt and drop bolt.

    Let Us Design And Supply Your Entire Spectator Rail System

    With supporting CAD drawings supplied, you’ll have the chance to view and approve the solution before committing to manufacture, and with our 15-year guarantee, you can be assured your new sports fencing system will last. Our team of experts is ready to answer any questions you have and help you develop the spectator rail system to your exact requirements.

    Nominal Fence Height (m) Panel Size Height x Width (mm) Post Size (mm) Ends/Inters Post Size (mm) Internal Corner Post Size (mm) External Corner Overall Length of Post (mm) No. of Fixings – Ends/Inters (1 Clamp) No. of Fixings – Corners (2 Clamps)
    1.2 1,030 x 2,506 60 x 40 100 x 100 100 x 100 1,800 4 8

    Data subject to change

    More Info


    Posts, Clamps and Fixings

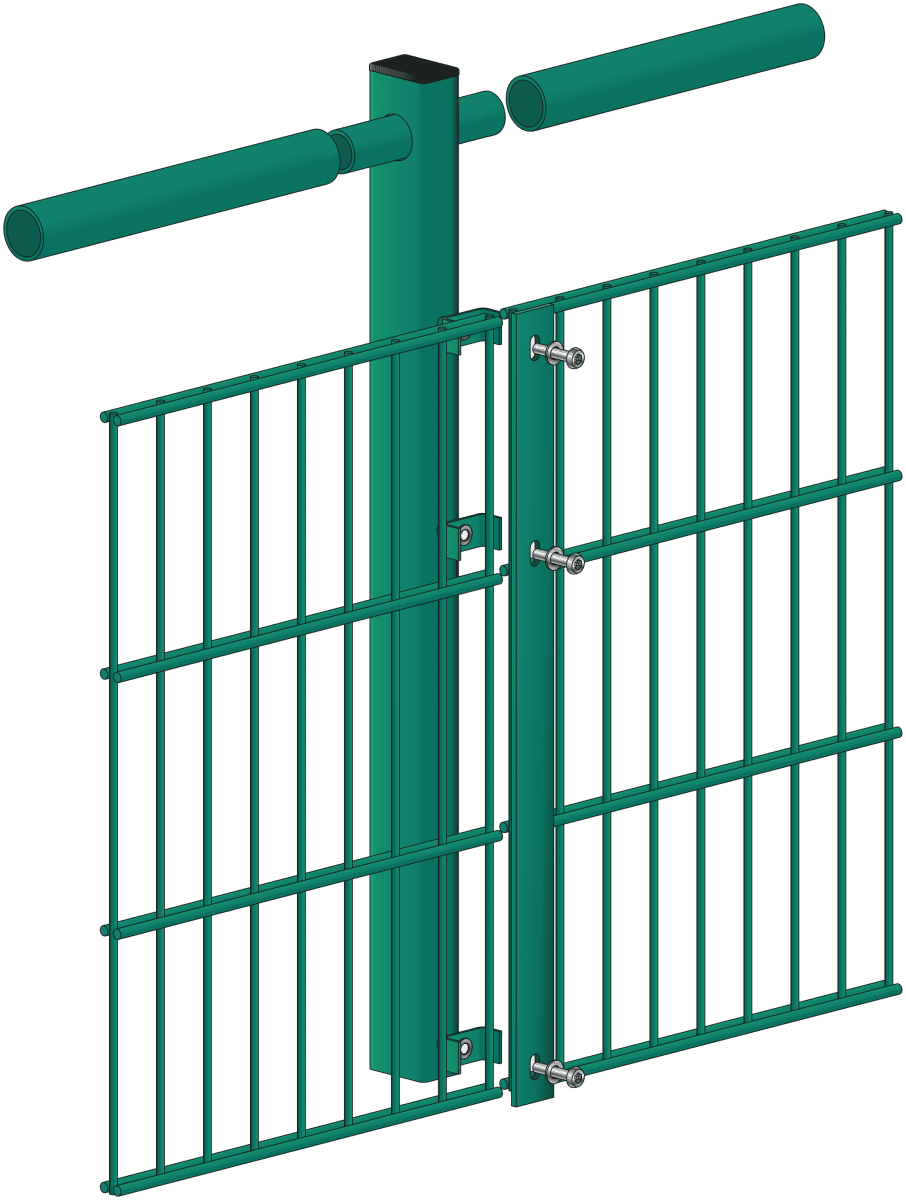

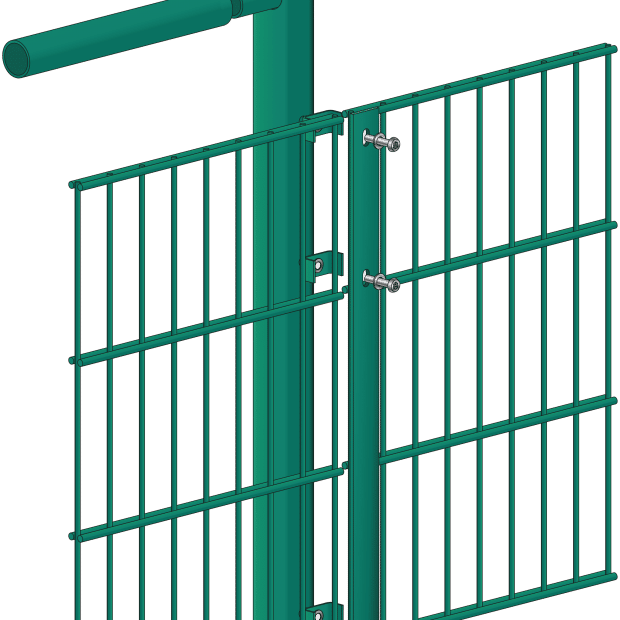

    The posts and full length clamp bars that Alexandra Security Limited offers provide a fixing system which secures the panels but allows for variations. The system is easy to install and allows the panels to be stepped, helping the fence line to follow the contours of the ground. With the vandal resistant security fixings this post and clamp system provides a higher level of security than the traditional clip system.


    • Standard panel in 868 or 656, and Rebound panel in 868 or 656


    Product and Finish Standards

    • Mesh panel wire manufactured to BS 4102 and galvanised to BS EN 10244-2:2001 class D, weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m2)
    • Post material manufactured to BS EN 10210-2:1997 and galvanised to BS EN 10346:2009
    • Panels, posts & hand rail are powder coated to BS EN 13438:2005 (min 100 micron)
