Enquire About Protek® 868 Clamp – Twin-Wire Mesh Security Fence

Our experienced staff are always ready to help and share their personal expertise to guide you to the right perimeter security solution.

01892 833 001

or Email:

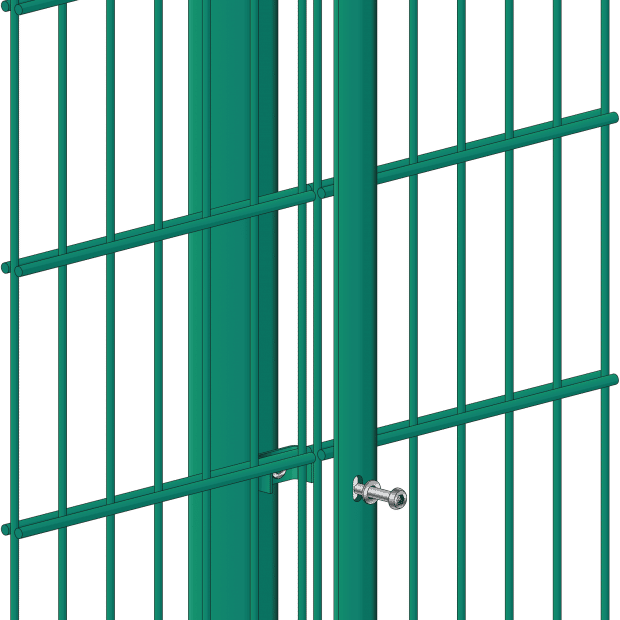

    The Protek 868 mesh fence system provides a very versatile mesh fence that is stronger than the Protek single wire systems. This system offers a number of different applications including industrial estates, retail parks, industrial buildings, playgrounds and is also particularly suitable for use around sport enclosures. This is a flat panel system using twin horizontal wires 8mm in diameter, welded to a 6mm vertical wire.

    Nominal Fence Height (m) Panel Size Height x Width (mm) Post Centres (mm) Overall Length of Post (mm) Post Size (mm) Ends/Inters (1 Clamp) Corners (2 Clamps)
    1.2 1,230 x 2,506 2,520 1,850 60 x 40 4 8
    1.8 1,830 x 2,506 2,520 2,400 60 x 40 6 12
    2.0 2,030 x 2,506 2,520 2,700 60 x 40 6 12
    2.4 2,430 x 2,506 2,520 3,200 60 x 40 7 14
    3.0 3,030 x 2,506 2,520 3,750 80 x 40 9 18

    Subject To Change

    More Info

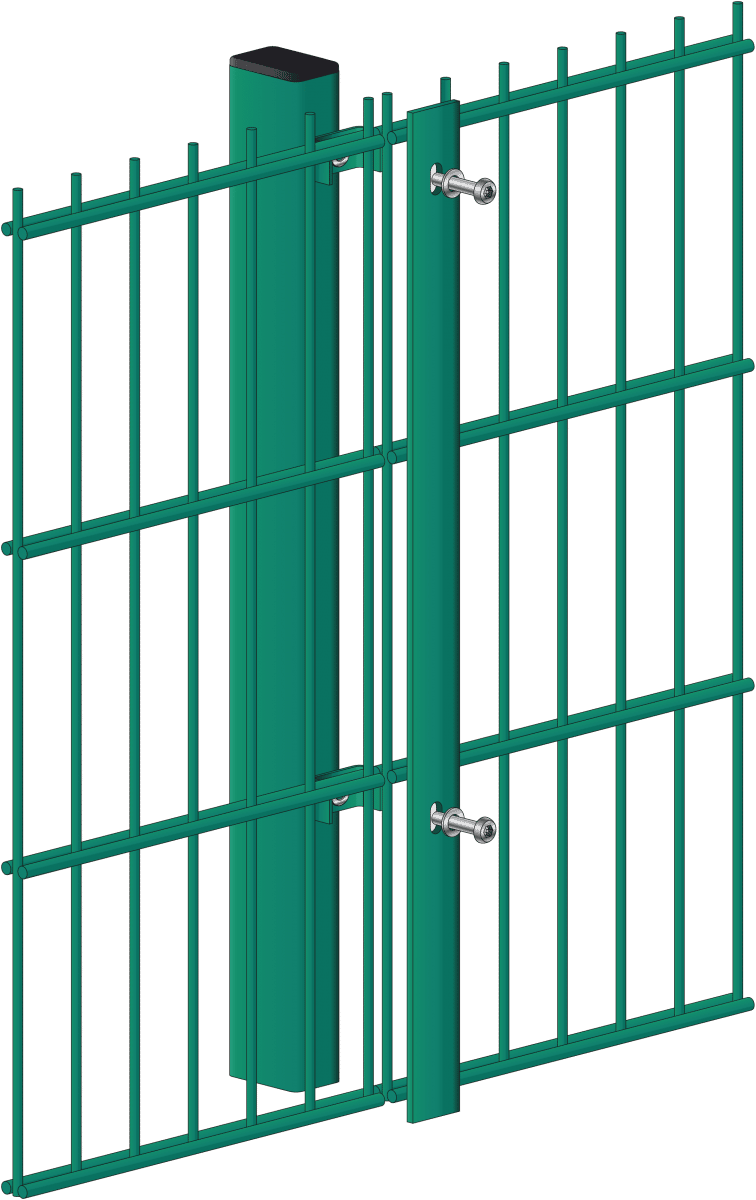

    Posts, Clips and Fixings

    The posts and clips that Alexandra Security Limited offers provide a fixing system which secures the panels but allows for variations. The system is easy to install and allows the panels to be stepped, helping the fence line to follow the contours of the ground. With the vandal resistant security fixings this post and clip system provides a reasonable level of security to any boundary.


    • Panels can be inverted to create flat top option
    • Other heights available on request


    Product and Finish Standards

    • Mesh panel wire manufactured to BS 4102 and galvanised to BS EN 10244-2:2001 class D, weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m2)
    • Post material manufactured to BS EN 10210-2:1997 and galvanised to BS EN 10346:2009
    • Panels & Posts are powder coated to BS EN 13438:2005 (min 100 micron)
