    Protek 868 Clip – Twin Wire Clip System Security Fencing

    The twin-wire welded mesh design of the Protek 868 Clip system provides a highly resistant barrier that is stronger than single wire systems.

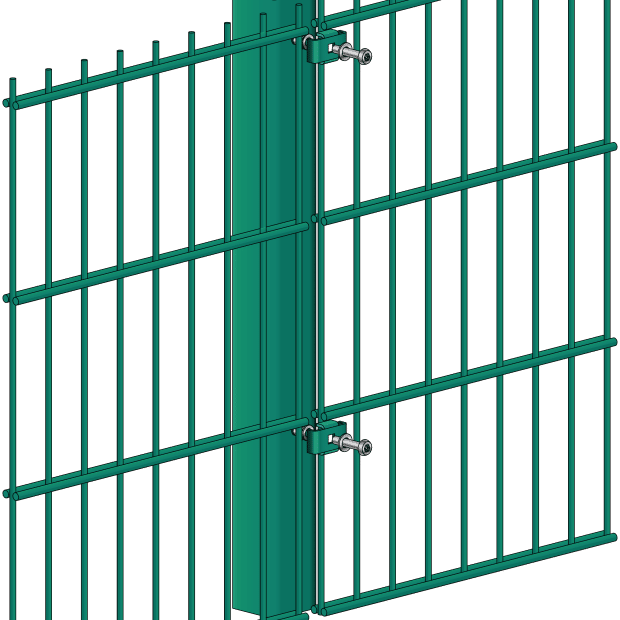

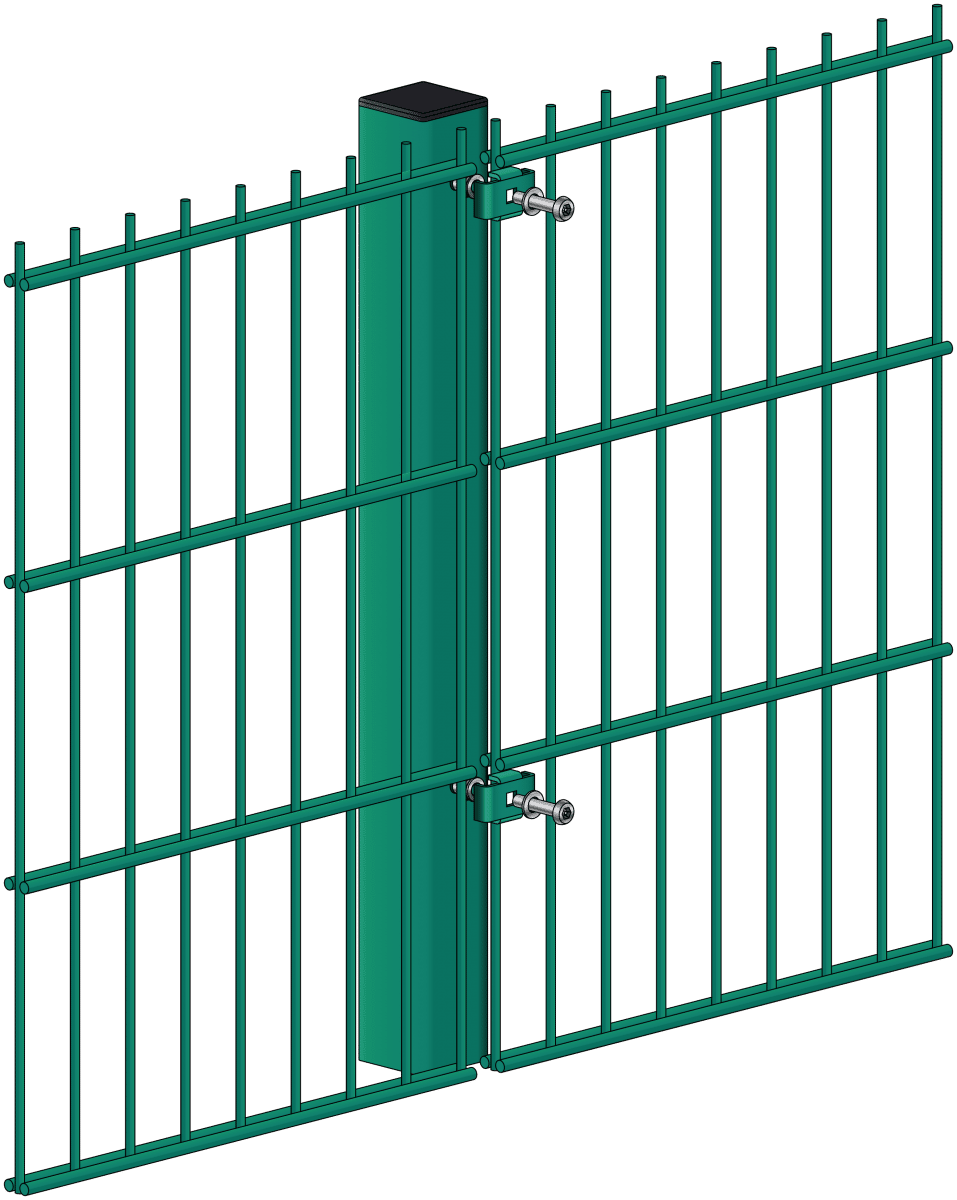

    Unlike the Protek 1000 & 2000 system, Protek 868 mesh fencing panels use twin 8mm diameter horizontal wires (rather than single wire) between the vertical wire, creating a mesh that is much harder to cut through. The small gaps between wires also make the fence panel very hard to climb over, making 868 an ideal perimeter fencing solution. In this clip system, adjoining panels are held together with metal clips that are then pinned into posts using pre-drilled holes.

    Multiple Height & Grounding Options

    The Protek 868 Clip panels start at a height of 1m and go up to a maximum of 3m for a single panel. Supporting posts are available in dig-in or bolt-down (postcrete mix available separately for dig-in posts). Bolt-down posts are suitable for anchoring into concrete, ideal for use around car parks, playgrounds and sports arenas.

    One Of The UK’s Leading Metal Boundary Fencing Suppliers

    Alexandra Security is one of the UK’s leading suppliers of metal security fencing, and our wire mesh is manufactured to a high standard. Each fence panel is supplied in a galvanised finish for long term rust protection, and if required a polyester powder coat finish to a colour of your choice can be applied to give extra protection and an improved aesthetic appeal. Green mesh is typically the standard finish on our fencing panels, allowing the fence to blend in with rural surroundings. Black is also a popular alternative for more urban sites.

    Our Team Of Experts Are Here To Help

    With decades of experience, Alexandra Security can offer expert advice on the right type of security fencing for your project. All of our mesh fencing comes with a 15-year guarantee, and we can supply matching standard and bespoke gates to match all of our fencing types. Supporting CAD drawings also mean you can see and sign-off the design before committing to manufacture. Get in touch with our team today to start planning your next security fencing project.

    Nominal Fence Height (m) Panel Size Height x Width (mm) Post Centres (mm) Overall Length of Post (mm) Post Size (mm) No. of Clips Per Post No. of Clips Per Corner
    1.2 1,230 x 2,506 2,520 1,800 60 x 60 4 8
    1.8 1,830 x 2,506 2,520 2,400 60 x 60 5 10
    2.0 2,030 x 2,506 2,520 2,600 60 x 60 6 12
    2.4 2,430 x 2,506 2,520 3,100 60 x 60 7 14
    3.0 3,030 x 2,506 2,520 3,750 60 x 60 8 16

    Subject To Change

    More Info


    Posts, Clips and Fixings

    The posts and metal clips that Alexandra Security Limited offers provide a fixing system which secures the panels but allows for variations. The system is easy to install and allows the panels to be stepped, helping the fence line to follow the contours of the ground. With the vandal resistant security fixings this post and clip system provides a reasonable level of security to any boundary.


    • Panels can be inverted to create flat top option
    • Other heights available on request


    Product and Finish Standards

    • Mesh panel wire manufactured to BS 4102 and galvanised to BS EN 10244-2:2001 class D, weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m2)
    • Post material manufactured to BS EN 10210-2:1997 and galvanised to BS EN 10346:2009
    • Panels & Posts are powder coated to BS EN 13438:2005 (min 100 micron)
