    Metal safety barriers for crash protection

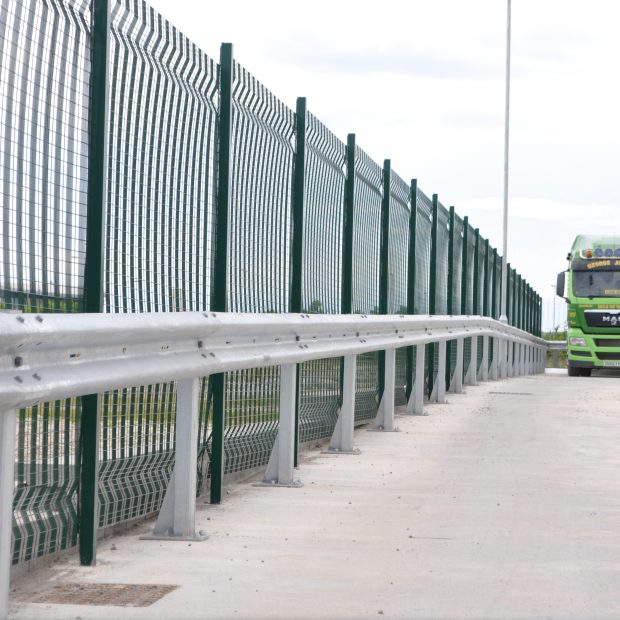

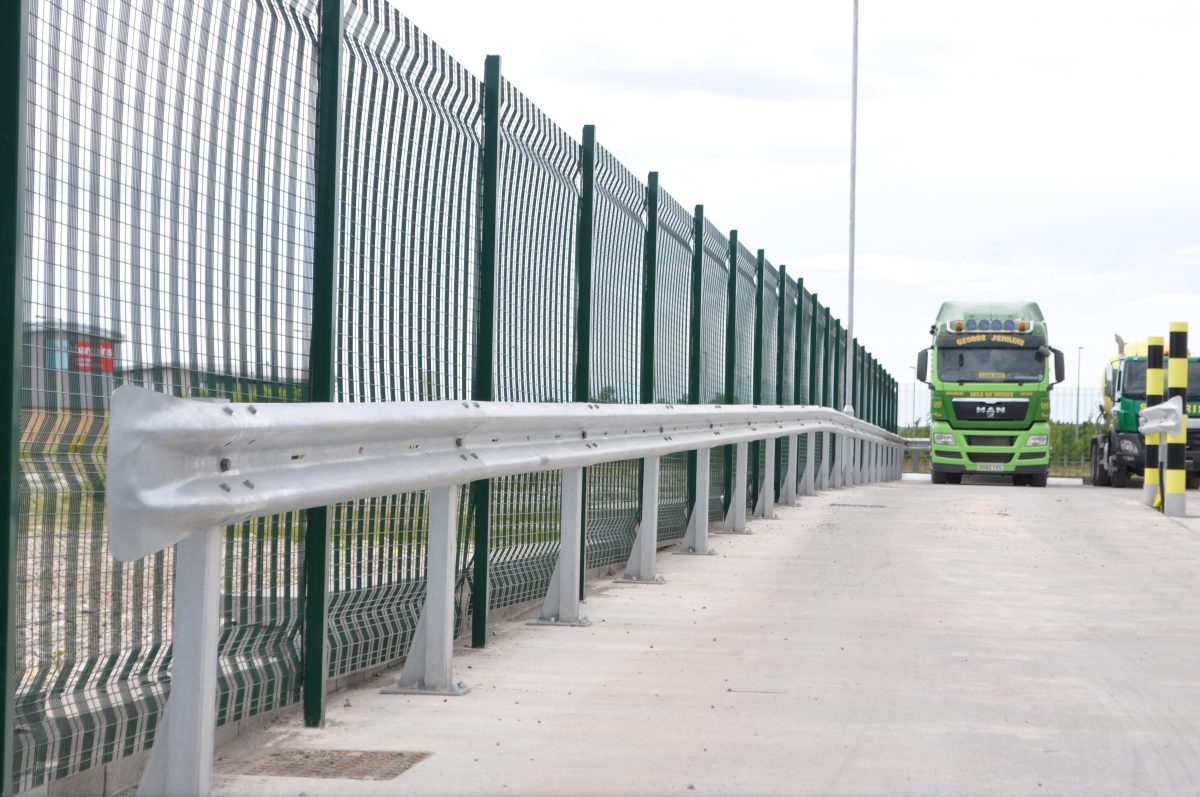

    Often known as either Crash Barrier, Armco Barrier or Car Park Barriers, these corrugated steel barriers protect infrastructure from the dangers of impact by vehicles. Armco is widely used in installations such as industrial/retail estates, car parks and warehouse facilities.

    Protect people, fencing and buildings from damage caused by moving vehicles and forklift trucks. In areas where there is a significant risk of harm identified, letting a moving vehicle collide with the Armco barrier is the preferred outcome, rather than letting it continue onwards.

    The corrugated profile of the steel barrier allows it to flex on impact while still maintaining strength. In addition, the barriers are designed to ensure that fast moving vehicles are deflected along the route of the barrier, while slow moving cars or forklifts will be stopped rapidly.

    Armco – An Effective Traffic Controlling Vehicle Barrier

    Fitting Armco barrier to segregate traffic from pedestrians, machinery, stock, racking and critical structures around your property can make a big difference between a minor repair, or an expensive and time-consuming repair cost, such as a structural wall or vulnerable warehouse shelving system. All of our steel Armco components are galvanised, making them suitable for both indoor and outdoor applications, due to the, providing long-lasting weather protection.

    Multiple Barrier Terminals and Post Options

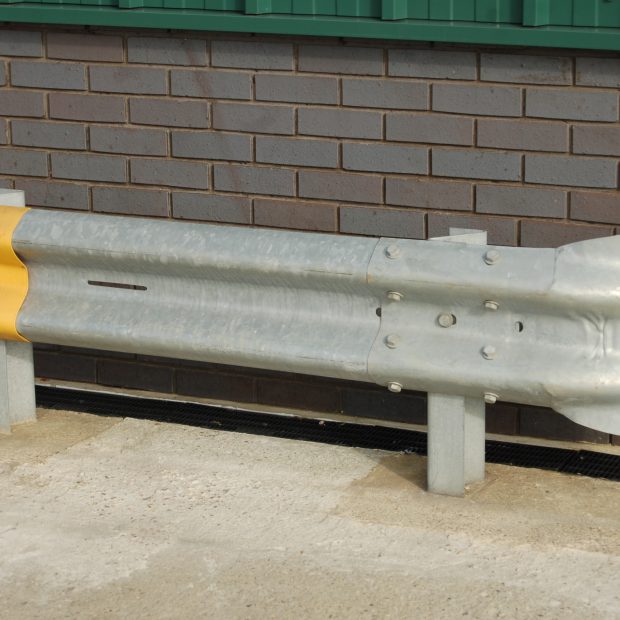

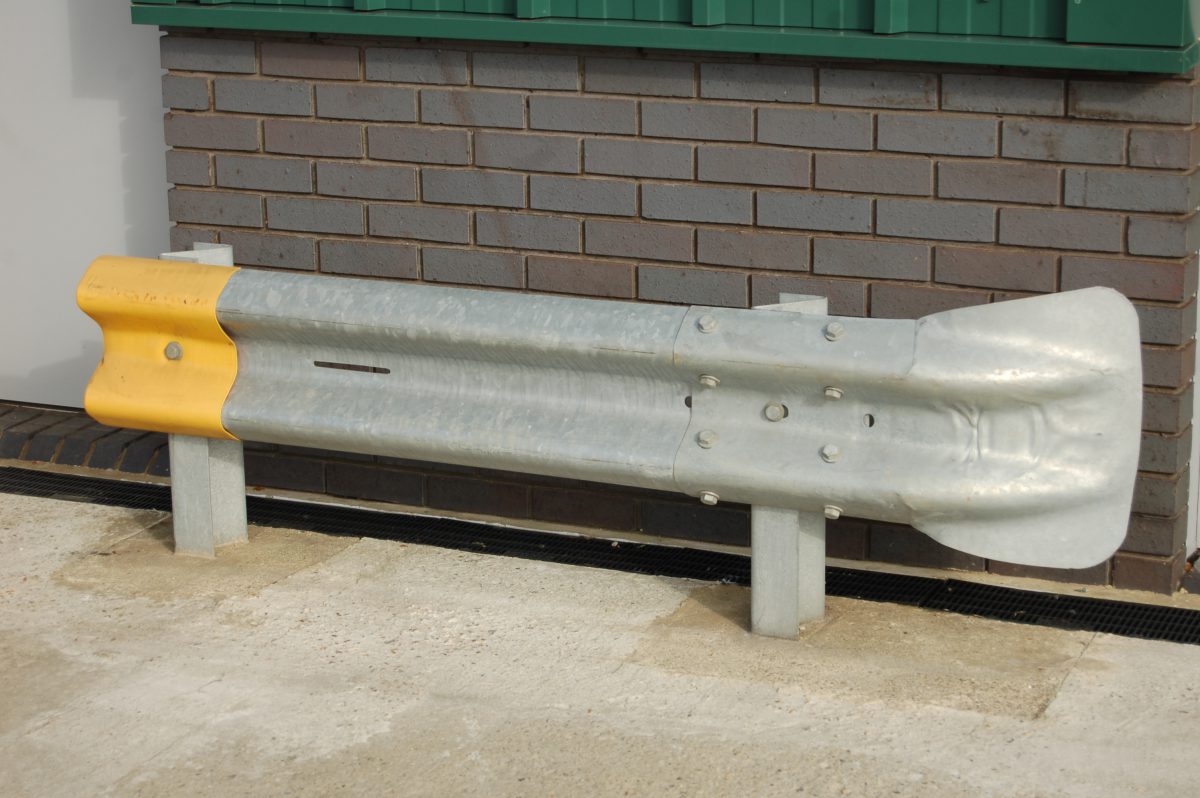

    In situations where pedestrians need to be kept segregated from moving vehicles, the Pedestrian End Terminal Armco Section is designed to create an end-point free from sharp edges that may cause injury to passing pedestrians. For applications where pedestrians will not be in close proximity to the Armco barrier, a standard wing end (also known as fish tail end) terminal is ideal to safety terminate the barrier run. Barrier posts are also available in concrete-in and base plated variants. This allows you to securely install car parking barrier around your site no matter if you have soft substrate or a concrete base.

    Available In Multiple Sections To Match The Requirements Of Your Site

    Alexandra Security is one of the leading manufacturers and suppliers of Road Crash Barriers in the UK. Our range of Armco barrier is available in straight beams or in a variety or radii. When combined with the appropriate corner sections, end units and post options, it allows you to create a complete crash protection system in your car park or warehouse.

    Protective Crash Barriers That Are Built To Last

    All items supplied with our road crash barrier system have a standard galvanised finished and can be powder coated to your colour of choice. Armco components are easily replaceable and have a maintenance free life of up to 30 years. Contact our expert team today to discuss the exact requirements for your Armco safety crash barrier system. Here at Alexandra we can arrange delivery throughout the UK, or if you are near us, collect your armco barrier direct from our depot in Kent.

    More Info

    Technical

    CBC35

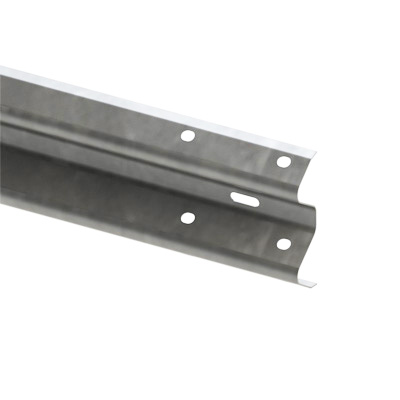

    Straight Armco Beam

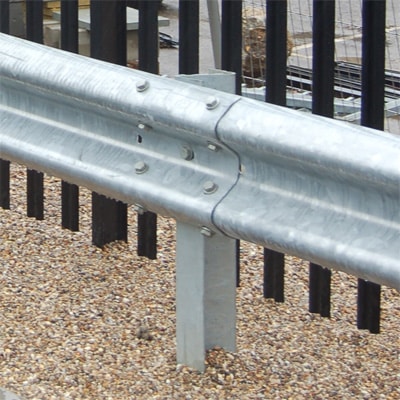

    Untensioned safety barrier is not suitable for use in highway applications. The corrugated beams are 3.5m overall length with an effective length of 3.2m. Beams are joined using 8 No. M16 x 35mm Lap Bolt sets and posts bolt to the beam using 1 No. M16 x 50 Post Bolt set.

    Code Length/DA Effective Length Material Finish Weight
    CBC35 3500mm 3200mm 2.5mm thick Galvanised 42.4kg
    CBTWE

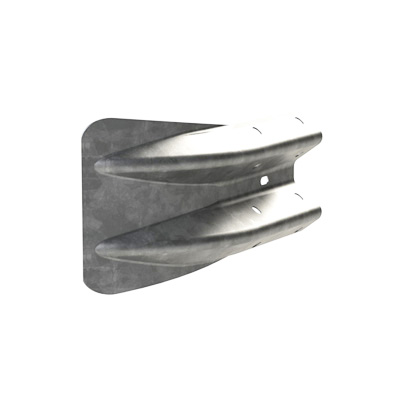

    Wing End Armco Terminal – CBTWE

    The Wing End Terminal is used to terminate a run of safety barrier. It provides an effective, robust solution in high volume traffic areas. Please note: This terminal end is not suitable for use where pedestrian access is required. Installed using one post (choice available) which also serves to support the end of the barrier.

    CBTPE

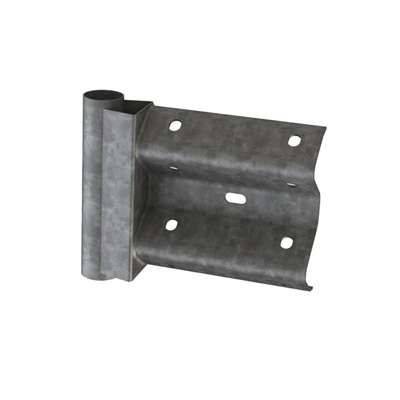

    Pedestrian End Armco Terminal – CBTPE

    The Pedestrian End Terminal is used to terminate a run of safety barrier. It provides an effective solution in high volume traffic and pedestrianised areas.

    Installed using one post (choice available) which also serves to support the end of the barrier.

    CBTEC

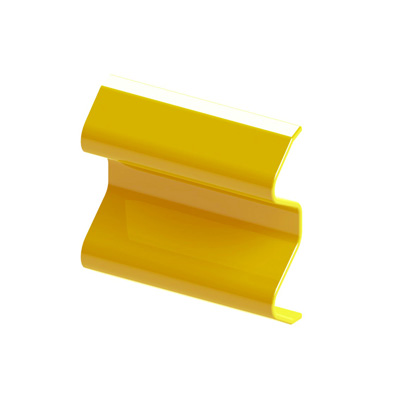

    Plastic End Armco Cap – CBTEC

    The Plastic End Cap is used to terminate a run of safety barrier. It provides an effective solution in pedestrianised areas. Please note: This Plastic End Cap is not suitable for use where vehicle access is required. Installed by sliding over the end of the beam and held in place with the post bolt set.

    CBC90E

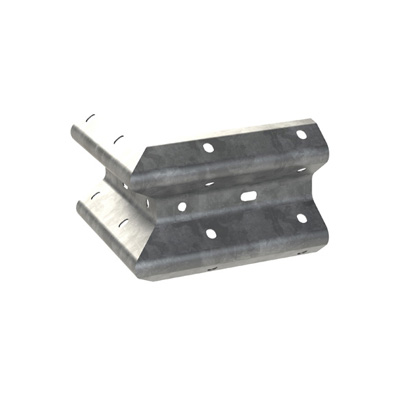

    90° External Armco Corner – CBC90E

    Suitable for use where two runs of barrier meet at 90°, effectively joining and eliminating any gap in the barrier.

    Installation is with two posts (choice available) which also serve to support the end of each barrier run, two M16 x 50 post bolt sets, and 16 No. M16 x 35 lap bolt sets.

    CBC90I

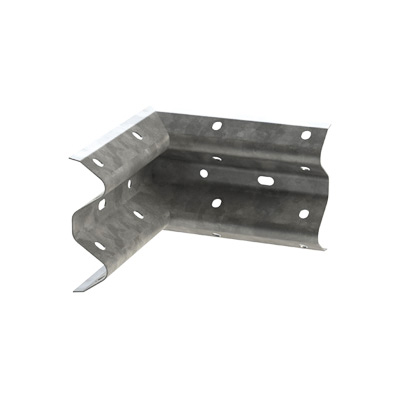

    90° Internal Armco Corner – CBC90I

    Suitable for use where two runs of barrier meet at 90°, effectively joining and eliminating any gap in the barrier.

    Installation is with two posts (choice available) which also serve to support the end of each barrier run, two M16 x 50 post bolt sets, and 16 M16 x 35 lap bolt sets.

    CBC45E

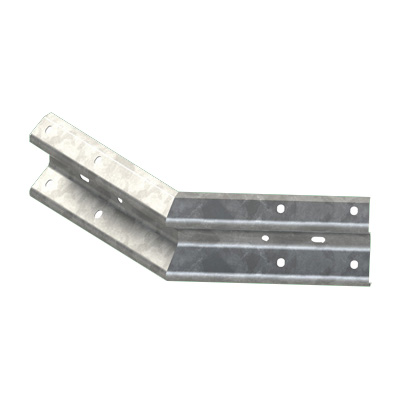

    45° External Armco Corner – CBC45E

    The 45° External Corner Connector is suitable for use where two runs of barrier meet at 45°, effectively joining and eliminating any gap in the barrier.

    Installation is with two posts (choice available) which also serve to support the end of each barrier run, two M16 x 50 post bolt sets, and 16 M16 x 35 lap bolt sets.

    CBC45I

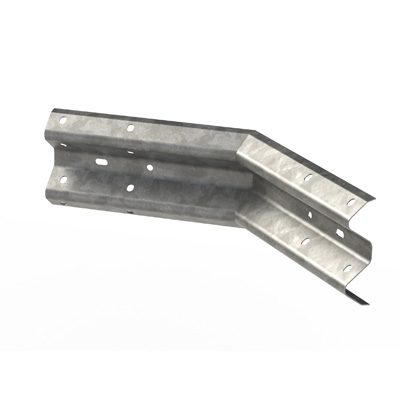

    45° Internal Armco Corner – CBC45I

    The 45° Internal Corner Connector is suitable for use where two runs of barrier meet at 45°, effectively joining and eliminating any gap in the barrier.

    Installation is with two posts (choice available) which also serve to support the end of each barrier run, two M16 x 50 post bolt sets, and 16 M16 x 35 lap bolt sets

    CBCSS

    Adjustable Corner – CBCSS

    The Adjustable Corner/Bullnose Joint can vary a change in direction from 0 – 180°. It is also used to terminate a double sided safety barrier run – giving rise to the name Bullnose.

    Installation is with two posts which also serve to support the end of each barrier run, and 16 M16 x 35 lap bolt sets.

    Sprung Barrier Bracket CBPSBB

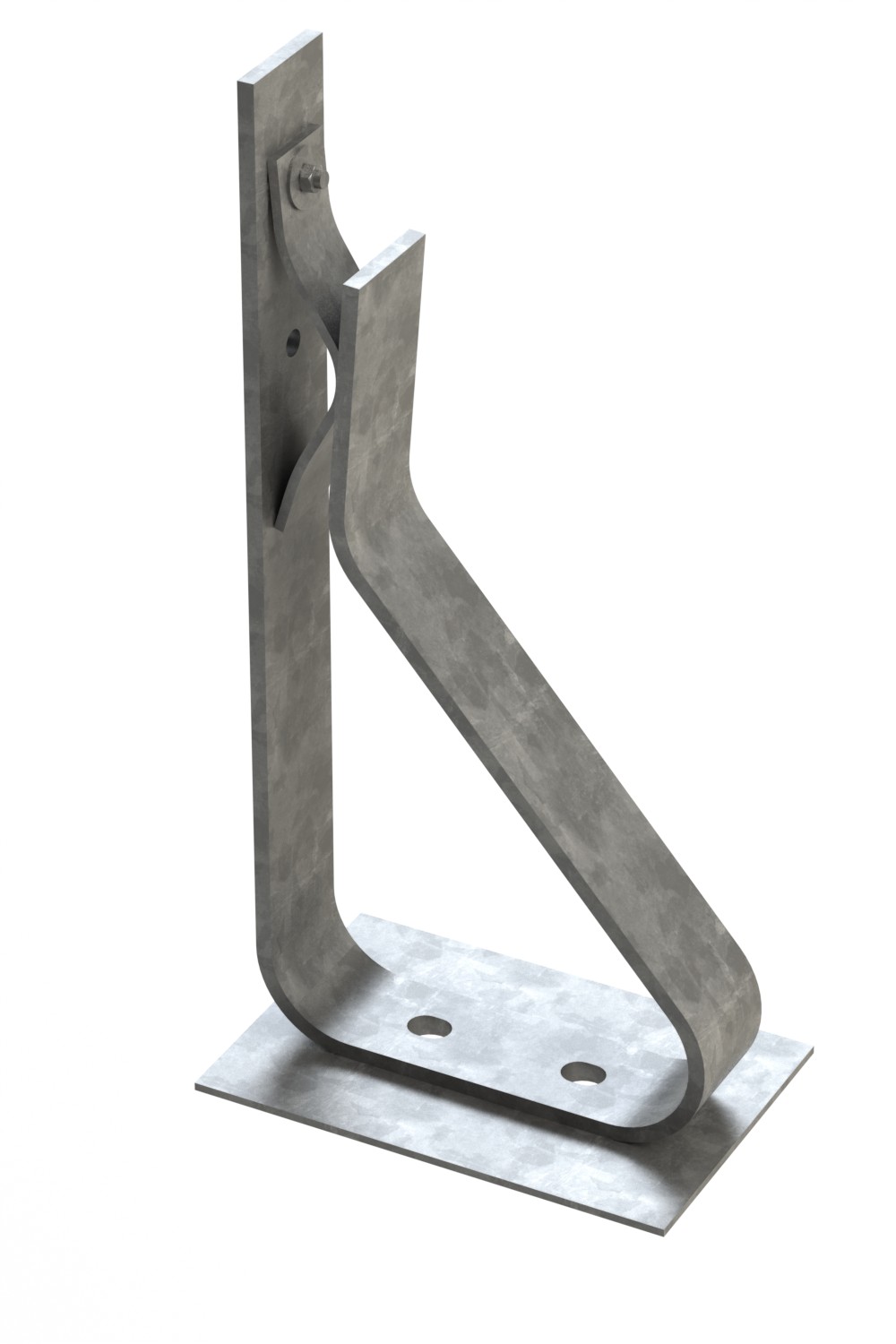

    Sprung Armco Barrier Bracket – CBPSBB

    The Sprung Barrier Bracket offers a heavy duty and flexible system which allows the barrier to deflect and spring back into place after impact. It is widely used in industrial and logistics warehousing and is particularly useful in areas where forklifts are operating. The post is surface mounted and is compatible with both the Corrugated and Open Box Beam barrier systems.

    CBPZ100

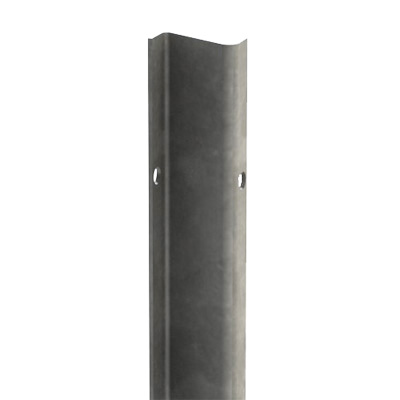

    Concrete in Post 100x44mm ‘Z’ section x 1200mm long – CBPZ100

    Steel posts in ‘Z’ section have been the traditional and time served choice for a number of years and are suitable for commercial areas, car parks and industrial parks, etc.

    These posts are suitable for non highway use and where frequent contact is likely. Compatible with both the Corrugated and Open Box Beam barrier systems.

    CBPZ125L

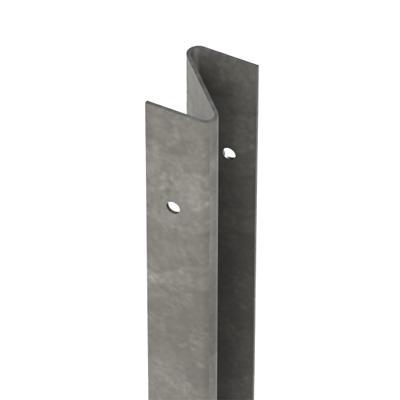

    Concrete in Post 125x90mm ‘Z’ section (two lengths available) – CBPZ125

    Steel ‘Z’ section posts have been the traditional and time served choice for a number of years, used in commercial areas, car and industrial parks, etc. These posts are suitable for non highway use and where frequent contact is likely. Compatible with both the Corrugated and Open Box Beam barrier systems.

    Code Section Length Material Thickness
    CBPZ125S 125x90mm 1200mm 6.0mm
    CBPZ125L 125x90mm 1500mm 6.0mm
    CBPI127L

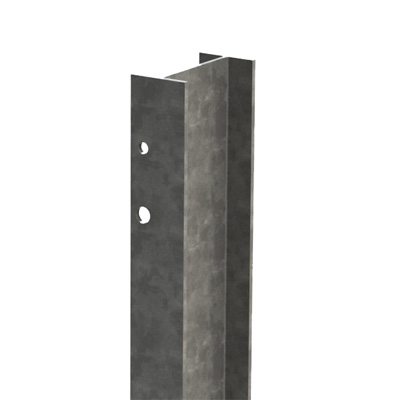

    Concrete in Post 150x75mm ‘I’ section (two lengths available) – CBPZ125

    Steel ‘I’ section posts provide a more robust solution than the traditional ‘Z’ section posts, used in commercial areas, car and industrial parks etc. they are also frequently used around waste disposal and re-cycling plants. Compatible with both the Corrugated and Open Box Beam barrier systems.

    Code Section Length Material Thickness
    CBPI127S 150x75mm 1200mm 6.0mm
    CBPI127L 150x75mm 1500mm 6.0mm
    CBPBP56

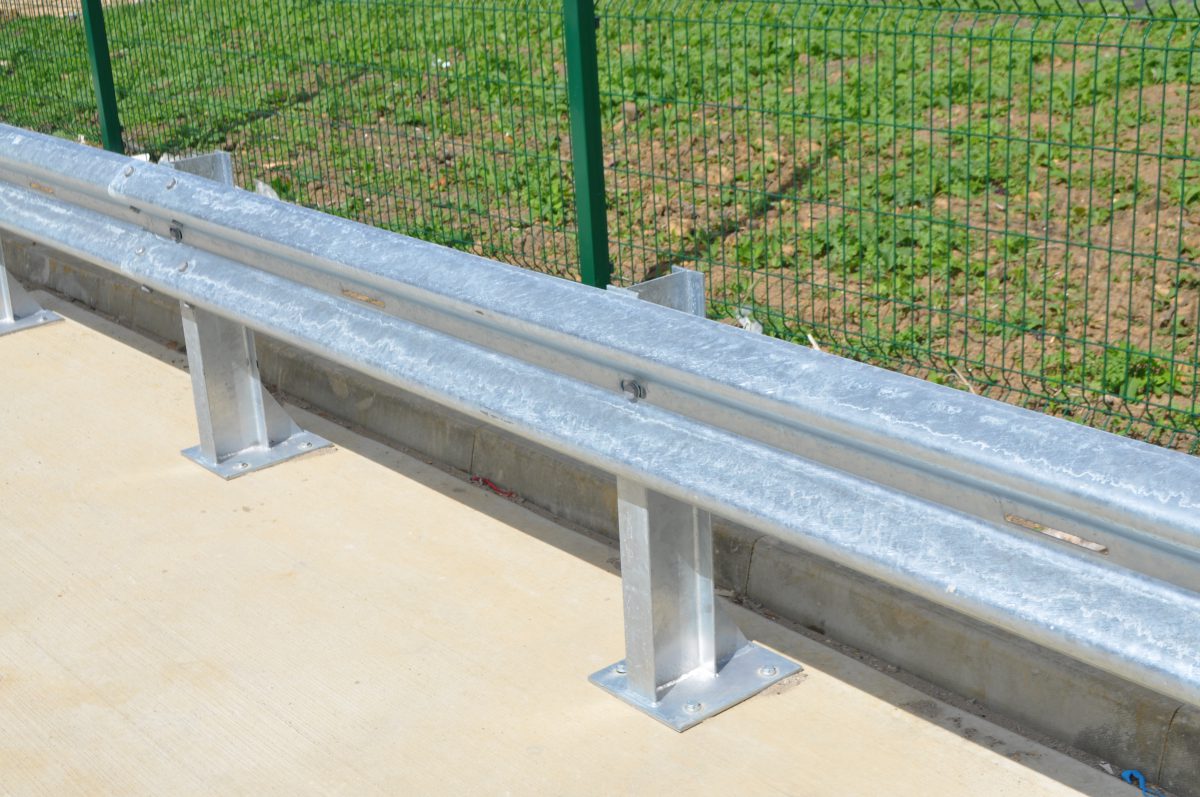

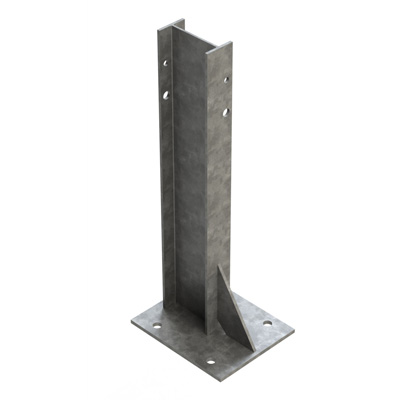

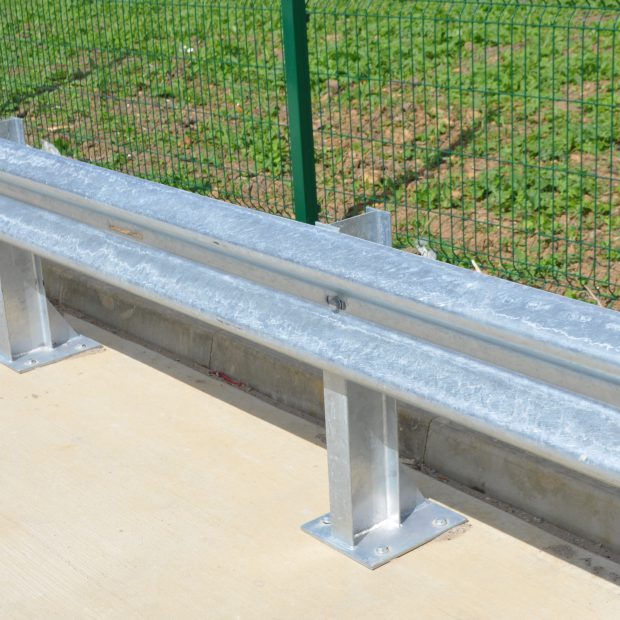

    Base Plated Post 150x75mm ‘I’ section (two lengths available) – CBPBP

    Steel ‘I’ section base plated posts are ideally suited for bolting directly onto a concrete surface. A choice of two fixing options are available; the standard anchor bolt or the chemical stud system, both available on request.Compatible with both the Corrugated and Open Box Beam barrier systems

    Code Section Length Material Thickness
    CBPBP56 150x75mm 560mm 6.0mm
    CBPBP76 150x75mm 760mm 6.0mm

    Finishes

    All items, except the plastic end cap, have a standard galvanised finish.

    Fixings

    POST BOLT SETS – CBB1650

    M16x50mm Post Bolt Set, used to bolt the Corrugated Safety Beam to the posts.

    LAP BOLT SETS – CBB1635

    M16x35mm Lap Bolt Set, used to bolt the Corrugated Safety Beam together.

    THROUGH BOLTS – FTB16175

    M16x175mm Through Bolts, used to bolt the Base Plated Posts and the Sprung Barrier Brackets onto concrete.

    CHEMICAL RESIN SYSTEM

    M16x190mm Chem Stud (FST1619), used to bolt the Base Plated Posts and the Sprung Barrier Brackets onto concrete. We supply the complete system including the chemical resin (FCHPUF), puffer pump to remove dust from holes (FCHT380) and dispensing gun to take chemical resin tube (FCHGUN).

    Armco Crash Barrier - Frequently Asked Questions

  • What are crash barriers & what are they supposed to do?

    A crash barrier generally refers to a strong fence positioned on the side of a road or in the middle of a two-way road. These crash barriers are meant to reduce the risk of serious accidents.

    They can also be used as safety barriers to protect people or buildings from vehicles or other manually operated equipment such as a forklift.

  • How do crash or safety barriers work?

    When a vehicle crashes into the barrier, it absorbs and redistributes the impact of the collision to lessen the blow to the vehicle. Additionally, it provides greater protection to people or buildings which may be positioned on the opposite side of the barrier.

  • Is our crash barrier suitable for highways?

    No it is not highway spec, it is for off-road use only. Often our crash barrier is installed in car parks, warehouses etc.
