    Car Park Height Restrictor Barrier

    Designed to prevent over-height or heavy goods vehicles from entering car parks or areas restricted to cars and light commercial vehicles.

    Alexandra Security car park height barriers are constructed of galvanised steel to be robust and sturdy. Designed and manufactured to fit your precise height limitation and width. Our height restrictors are suitable for a wide-range of car park entrances and areas where restrictions exist, such as pedestrian areas, railway stations, and multi-story and underground parking.

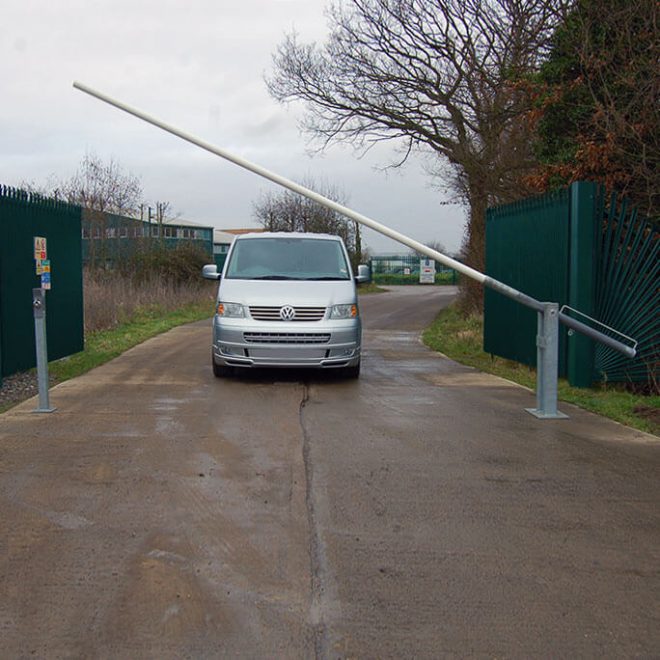

    Height Restrictor Swing Arm Opening Option

    Where occasionally taller or over-height vehicles are required to enter the restricted area, the horizontal arm of the restriction barrier can rotate open 90° in the desired direction to allow access. The handing and direction of the swing can be specified at the time of order.

    Lockable In Open Position

    For extra safety when the barrier arm is open, an additional catch post can be supplied to enable the height restrictor bar to be locked in place. This is especially useful for car parks that are in use to over height vehicles during the day but need to restrict access out-of-hours.

    The headroom access clearance height can also be clearly marked using a high visibility sign attached to the height restrictor barrier. Additionally, a nudge bar can be added so that if a vehicle does attempt to enter the area, it will not damage the barrier structure.

    As standard, barriers are supplied in a galvanised finish. If you’d like your height restrictor to match your brand or company colours or stand out further, powder coating to any RAL colour is also available on a short lead time.

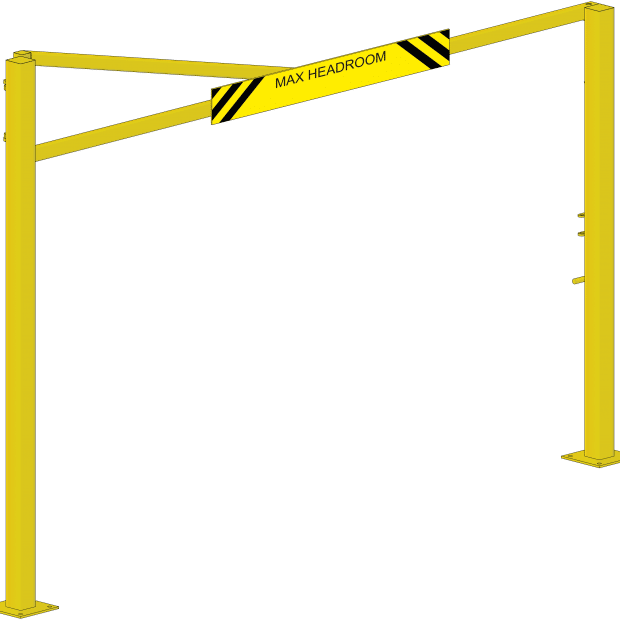

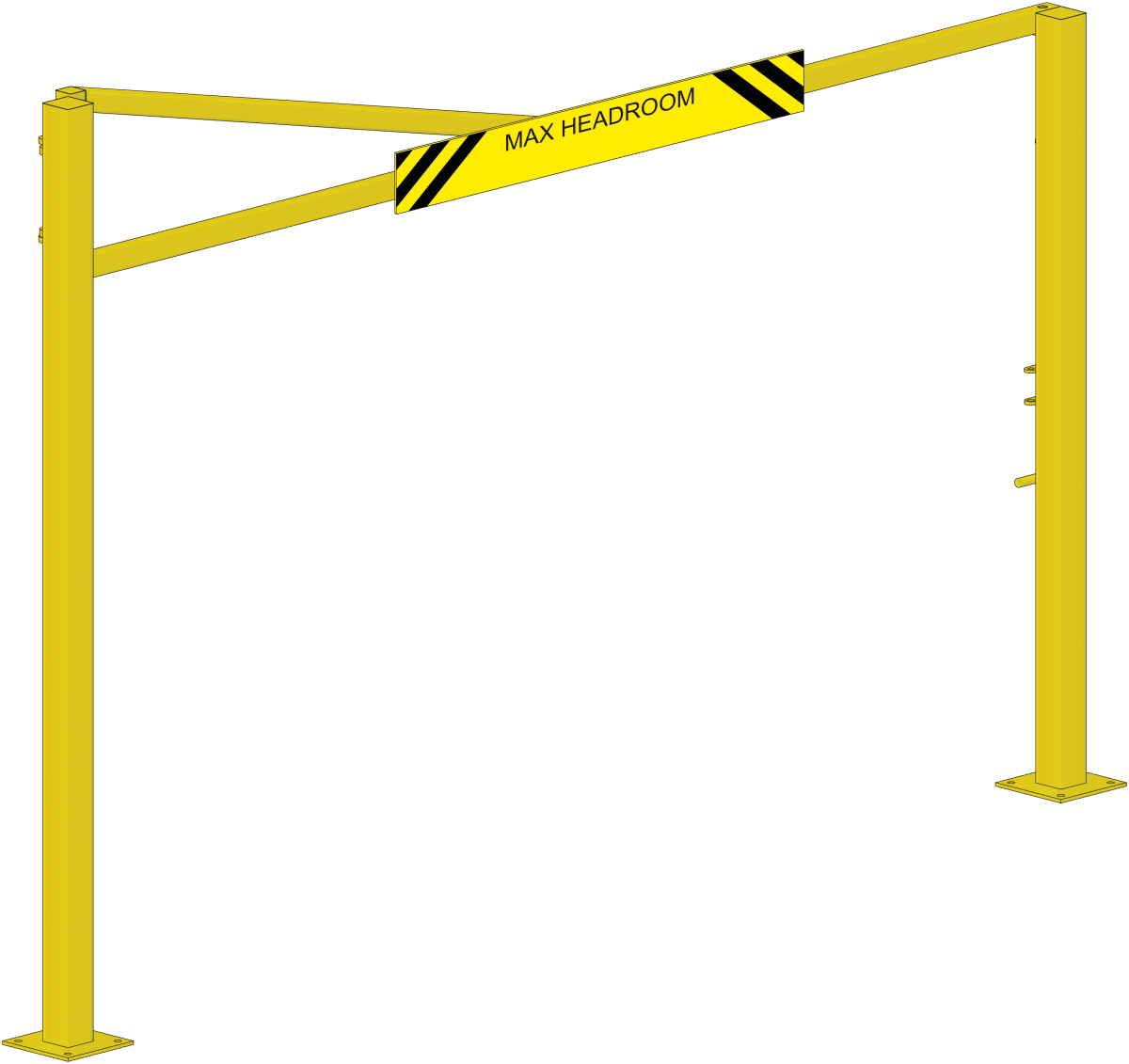

    Height Restrictor Specification

    A typical car park barrier specification with swinging arm.

    Custom-Made To Your Exact Specifications

    Our height restrictors are made to order to fit the exact dimensions of the car park or area entrance you wish to secure. With the option of base-plated or concrete-in posts, the type of grounding is not an issue.

    All our height restrictor barriers are supplied with supporting CAD drawings, so no matter the design required, you’ll have the chance to view and approve the car park height barrier before committing to manufacture. Our expert team will be able to advise you on the best design to fit your requirements. Contact them today to discuss your project.

    More Info

    Conforms to BS 1722-14: 2006


    Barrier finish is galvanised as standard with the option of polyester powder coating to most RAL or BS references

    Height Restrictor Barriers - Frequently Asked Questions

  • What height are car park height restrictor barriers?

    Height barriers are generally between 1.9m and 4m in height with the vast majority being somewhere between 2.0m and 2.5m. But it does depend on the application – we can manufacture to any size.
