    SiteGard P500 V-Mesh Fencing System

    The SiteGard P500 mesh fencing system is ideal as a general purpose perimeter demarcation fence, or for use on construction sites as an alternative to timber hoarding.

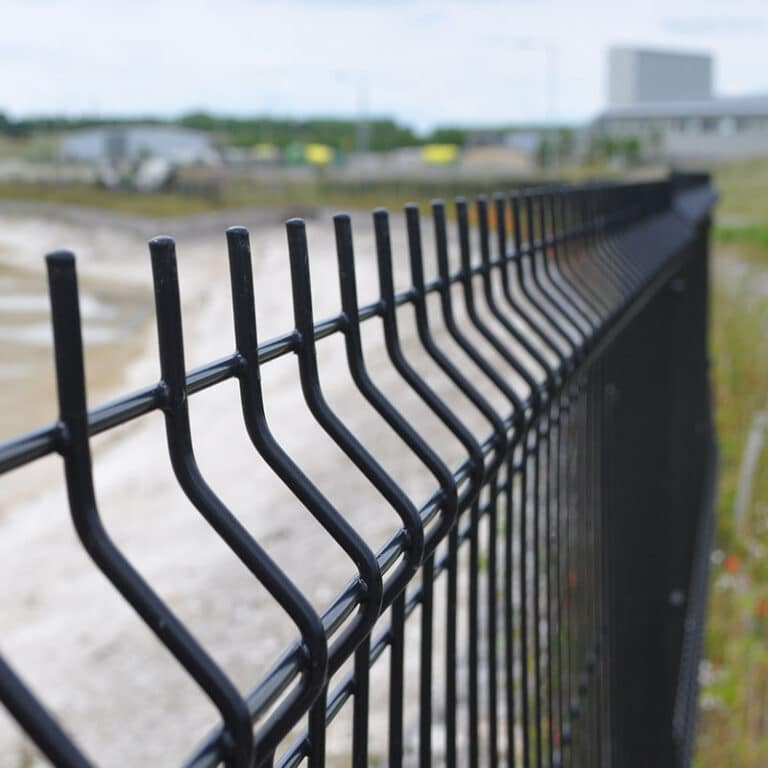

    SiteGard P500 features welded 2.4m high 4mm single-wire mesh panels with horizontal folds to form an anti-climb fence line that is easy to install. Adjoining panels are held together with metal clips that are then pinned into posts using pre-drilled holes.

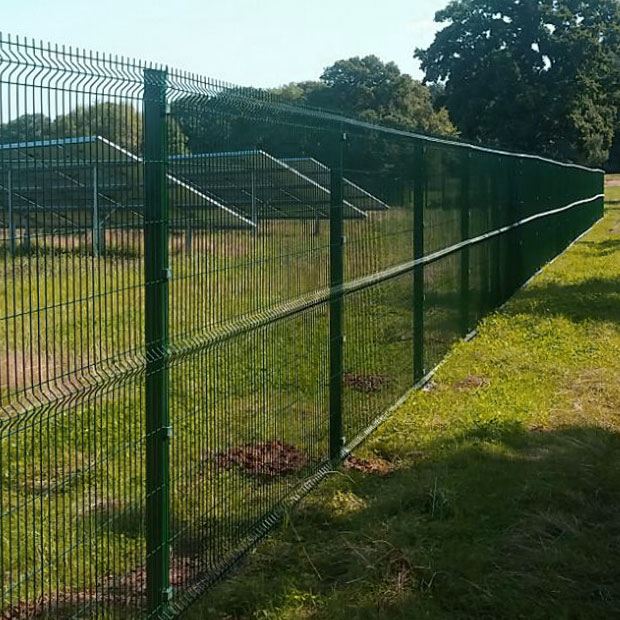

    SiteGard P500 is an excellent option for low-security applications, including solar farms and large-scale boundary fencing. Additionally, it can be seamlessly integrated with any of the hoarding gates available in the SiteGard collection, resulting in a comprehensive perimeter access and security solution that matches the height requirements.

    Available In Heights of 2.0m and 2.4m

    SiteGard P500 is supplied in heights of 2.0m of 2.4m, with posts allowing for 0.6m in the ground. 2.0m is ideal as a general purpose boundard fence, while 2.4m provides enough height to make the fence very difficult to climb. This height also perfectly matches the height of our SiteGard range of construction site gates, allowing a complete hoarding and access system for building sites to be created. The powder-coated panels and posts also make the fence more resistant to minor cosmetic damage, as well as weathering.

    One Of The UK’s Leading Metal Boundary Fencing Suppliers

    Our team of experts are on hand to provide advice and suggest the best perimeter fencing product for your requirements. If you have custom-options such as base-plated or cranked posts, then we can provide bespoke CAD drawings to illustrate how your fencing system would look, before you sign-off on the project.

    Nominal Fence Height (m) Panel Size Height x Width (mm) Post Centres (mm) No. ‘V’ Bars per Panel Overall Length of Post (mm) Post Size (mm) No. Clips Per Post
    2.0 1,930 x 3,000 3,000 3 2,400 60 x 40 4
    2.4 2,330 x 3,000 3,000 3 3,000 60 x 40 4

    Subject To Change

    More Info


    Posts, Clips & Fixings

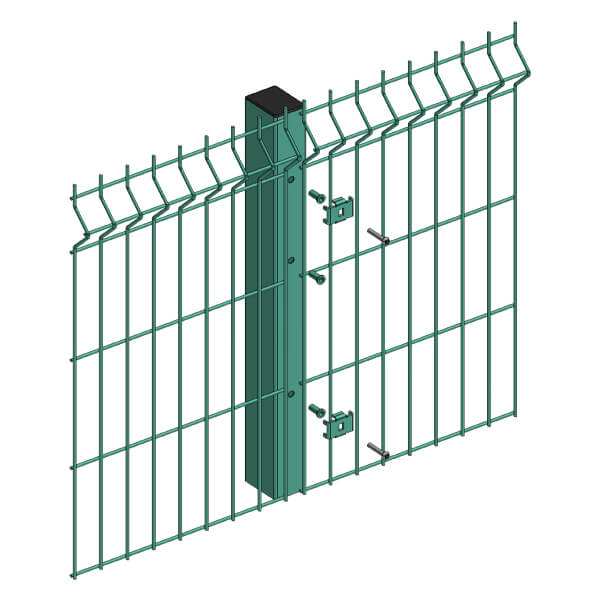

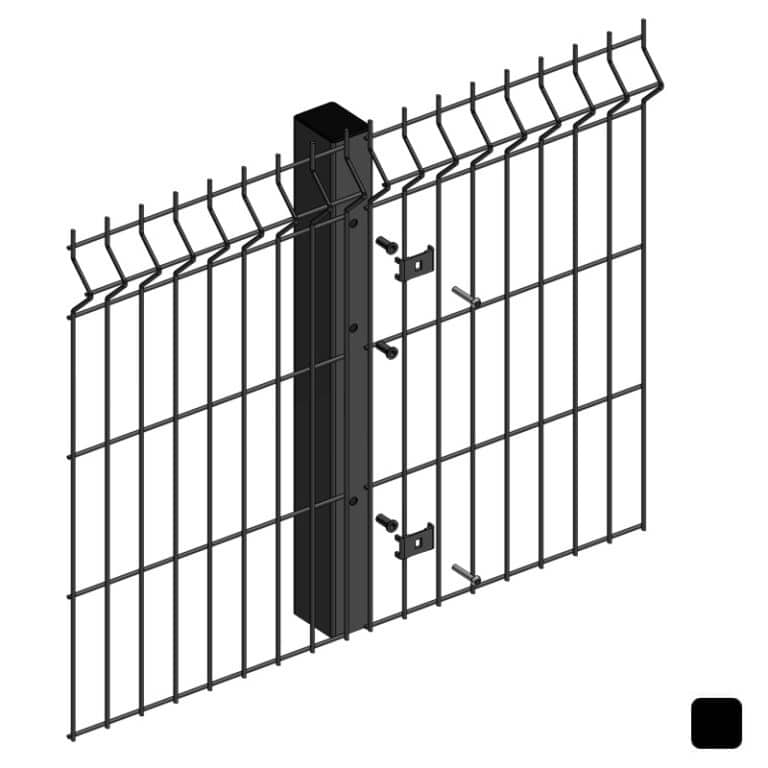

    The posts and metal clips that Alexandra Security Limited offers provide a fixing system which secures the mesh fencing panels but allows for variations. The system is easy to install and allows the panels to be stepped, helping the fence line to follow the contours of the ground. With the vandal resistant security fixings this post and clip system provides a reasonable level of security to any boundary.


    • Panels can be inverted to create flat top option


    • Post material manufactured to BS EN 10210-2:1997 and galvanised to BS EN 10346:2009
    • Panels & Posts are powder coated to BS EN 13438:2005 (min 100 micron)

    SiteGard P500 - Frequently Asked Questions

  • What colours is SiteGard P500 available in?

    SiteGard P500 is available in RAL 6005 (Moss Green) and RAL 9005 (Black), in both 2.0m and 2.4m heights. Stocks are held of both colours and heights at our Kent depot, allowing us to fulfil orders directly without a long lead time.

  • What sets apart SiteGard P500 from Protek 1000?

    Both are v-mesh style perimeter security fences, but they differ in wire thickness. SiteGard P500 is made of 4mm single wires, while Protek 1000 utilizes 5mm single wires. SiteGard P500 also uses 60x40mm posts, compared to the 60x60mm posts of Protek 1000. Consequently, the Protek 1000 system offer slightly higher rigidity than SiteGard P500, while SiteGard P500 proves to be a more cost-effective option.
